Accessories and spare parts

Here you will find accessories for installation and mounting as well as spare parts for sensors and Measuring amplifiers. If you do not find what you are looking for immediately, or if you have any further questions, please send us an inquiry via the contact form.

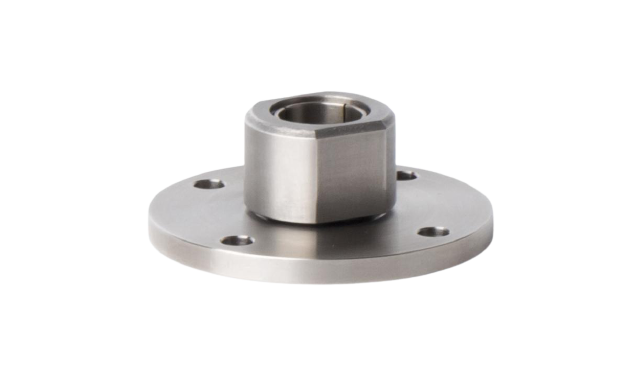

KL12 clamping flange for LVDT

Front clamping flange

  • For mounting 12mm sensors
  • Robust stainless steel design
  • Precise clamping
  • Four-hole flange

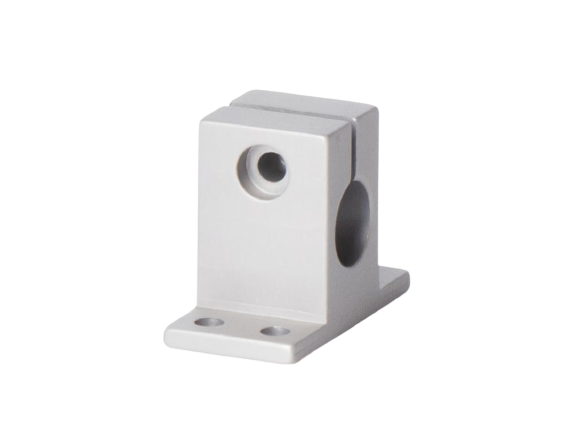

MB12 LVDT mounting bracket

Mounting block MB 8

  • For mounting 8mm sensors
  • Material aluminium, milled
  • Precise clamping
  • incl. clamping screw
MB12 LVDT mounting bracket

Mounting block MB 12

  • For mounting 12mm sensors
  • Material aluminium, milled
  • Precise clamping
  • incl. clamping screw
MB12 LVDT mounting bracket

Mounting block MB 14

  • For mounting 14mm sensors
  • Material aluminium, milled
  • Precise clamping
  • incl. clamping screw
MB12 LVDT mounting bracket
  • Mounting block MB 16

    • For mounting 16mm sensors
    • Material aluminium, milled
    • Precise clamping
    • incl. clamping screw
MB12 LVDT mounting bracket

Mounting block MB 20

  • For mounting 20mm sensors
  • Material aluminium, milled
  • Precise clamping
  • incl. clamping screw

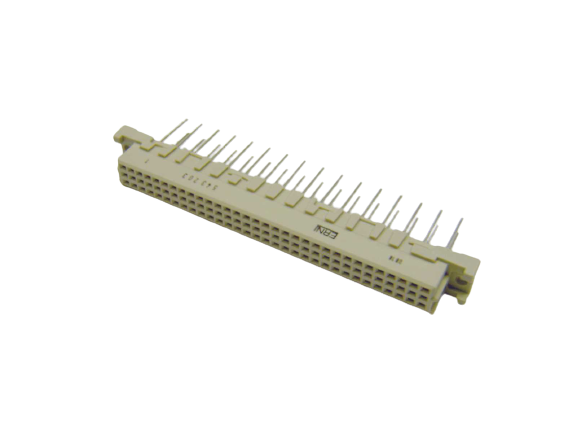

Steckerleiste

Pin strip / terminal strip

  • For mounting measuring amplifier cards in eurocard PCB format w. slide-in module
  • MBI50... / MBI46...
  • Fast, precise connection
wegaufnehmer-wt-wta-tastspitze-detail

Bellows 3mm

  • to protect the core rod from dirt and moisture
  • for LVDT sensors WT / WTA / WTG / WTH
  • Material EPDM
  •

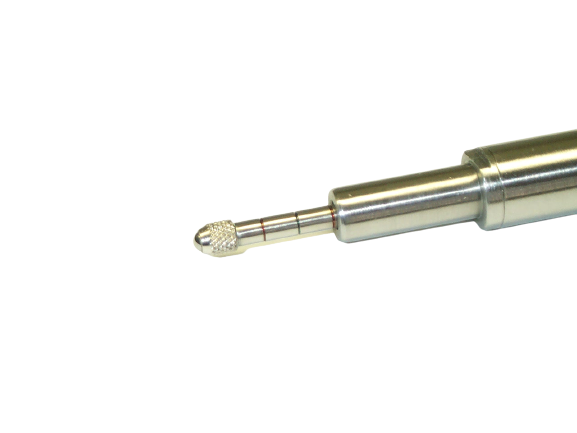

WT Markierungen

Standard probe tip 3mm

  • Small version
  • OD 5mm, ball head 3mm
  • Hardened ball head
  • Screw-in thread M2,5
  •

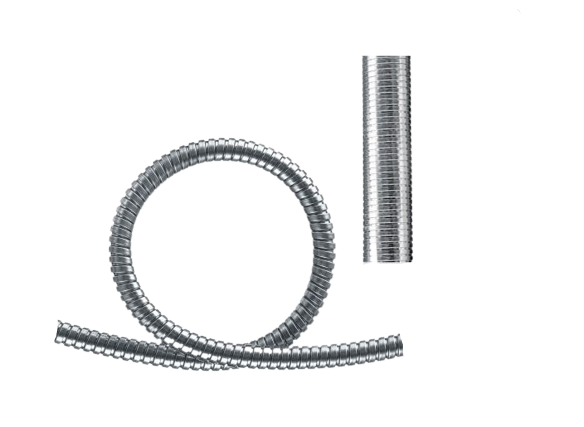

Metallschutzschlauch2-removebg-preview

Metal protection hose

  • For cable protection on machines
  • Very robust design
  • Double folded
  • ID14mm / OD16mm
  • Bending radius min.
LS Schraubadapter

Mounting adapter LS

  • For mounting LS sensors
  • Easy disassembly/reassembly
  • Robust stainless steel design
  • For threaded connection M12

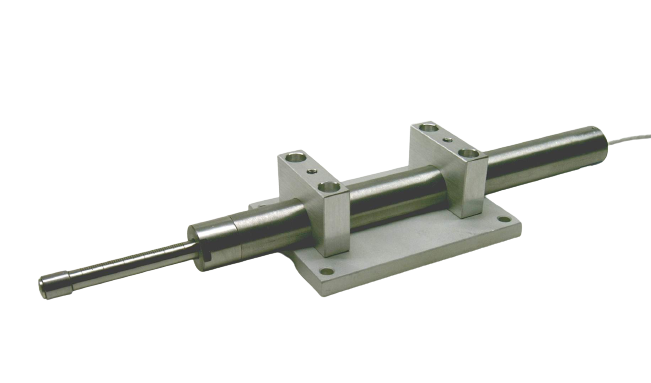

DTC Montagehalterung

Clamping device

  • For 25mm sensors
  • Suitable for DTC probe sensor
  • Robust aluminium design
  • 4 x M8 screw holes
dk-dummy

Spare diving anchor

  • For cable protection on machines
  • Very robust design
  • Double folded
  • ID14mm / OD16mm
  • Bending radius min.
Metallschutzschlauch2-removebg-preview

Metal protection hose

  • For cable protection on machines
  • Very robust design
  • Double folded
  • ID10mm / OD12mm
  • Bending radius min.



MESSOTRON LVDT probes

Probe tips for probe sensors

  • For 25mm sensors
  • Suitable for DTC probe sensor
  • Robust aluminium design
  • 4 x M8 screw holes
messverstaerker-mbi46-12-hauptbild-perspektive

Top-hat rail adapter

  • For MBI 46.12. small module
  • For mounting on DIN top-hat rail
  • Plastic material
messverstaerker-mbi46-13-hauptbild-perspektive

Cable measuring amplifier

  • Stichpunkt
  • Highlight
  • Aufzählung
  • Feature
  •
messverstaerker-mbi50-25-hauptbild-perspektive

Replacement board MBI

  • To replace entire amplifier cards
  • For all measuring amplifier series MBI
  • As module, built-in or eurocard PCB



  •

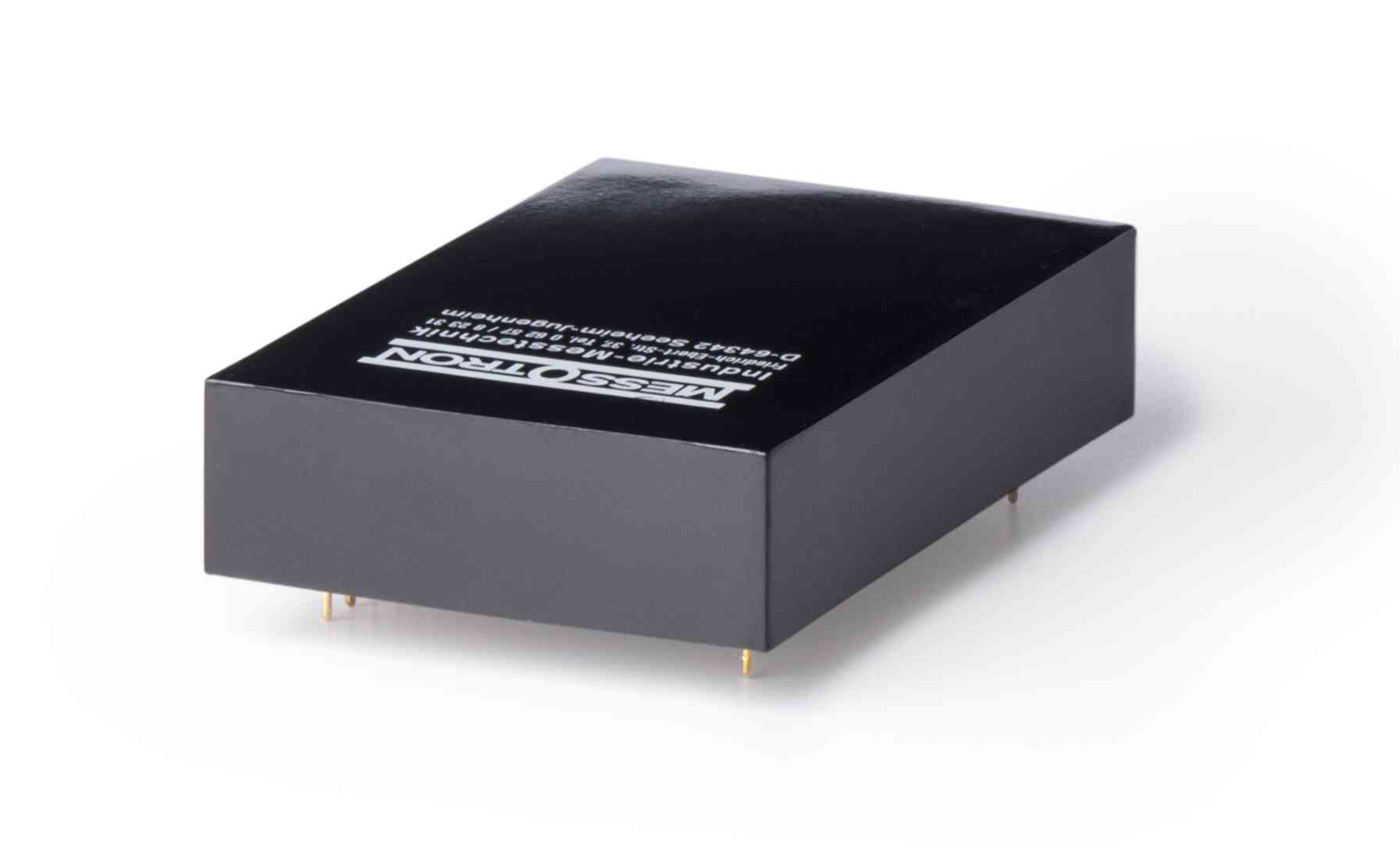

50-20

Measuring amplifier module

  • As a replacement for self-installation
  • Encapsulated in plastic housing
  • For MBI series

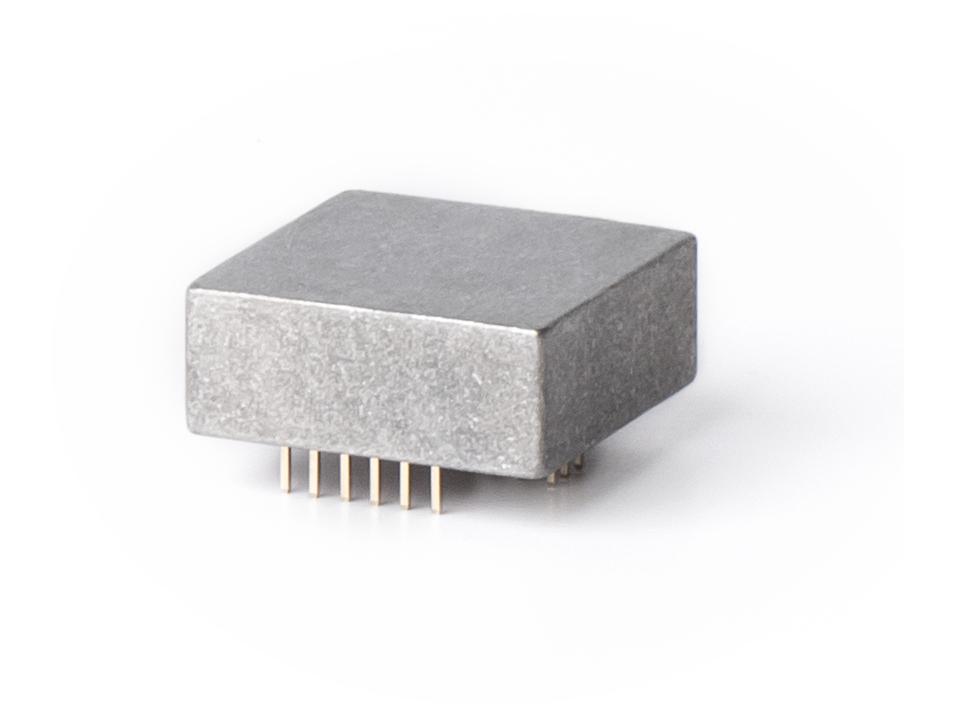

46-10

Measuring amplifier module

  • As a replacement for self-installation
  • Encapsulated in plastic housing
  • For MBI series


messverstaerker-mbi46-32-hauptbild-perspektive

Plastic housing

  • As a replacement or for conversion
  • Suitable for DIN top hat
  • Front potentiometers for adjustment
  • For series MBI 46.32
