Elastomere sensors

Elastomer sensors of the ES series represent a new development of sensor technology based on strain gauges. They consist of several strain gauge sensors which are injected into the silicone elastomer together with the integrated evaluation electronics. This makes the sensors extremely robust and resistant to the most adverse conditions, especially for outdoor use. Possible applications are in structural monitoring for monitoring cracks, expansion joints and deflection, but also in production and general mechanical engineering for all kinds of hard-to-reach installations.

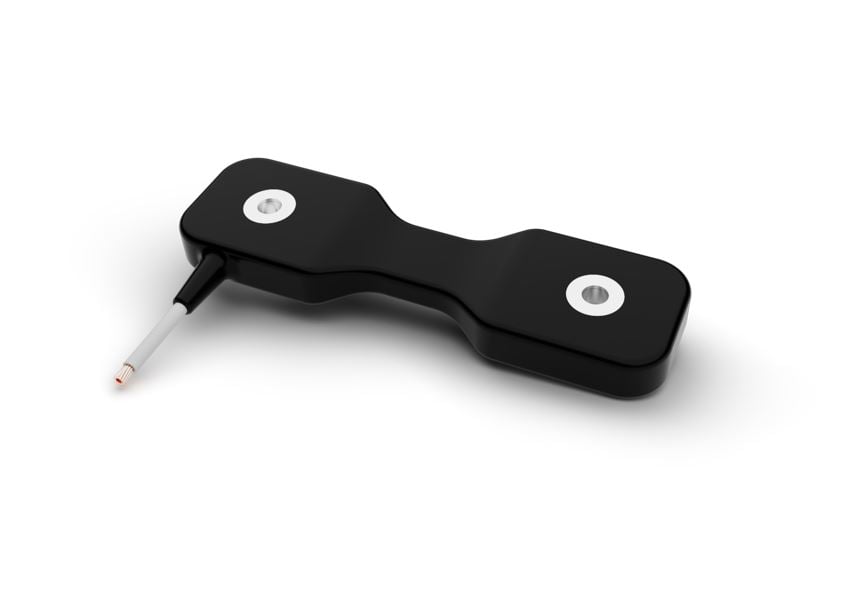

ES 5 Elastomere sensor

Elastomere sensor ES 5

Strain gage sensor in high-performance elastomer for crack and strain monitoring in structural monitoring / building monitoring

  • Very robust solution IP68/IP69K
  • Measuring range 5mm
  • Resolution <1µm
  • Integrated signal conditioning unit
  • Direct 4...20mA/0...10V signal
  • Simple assembly/commissioning

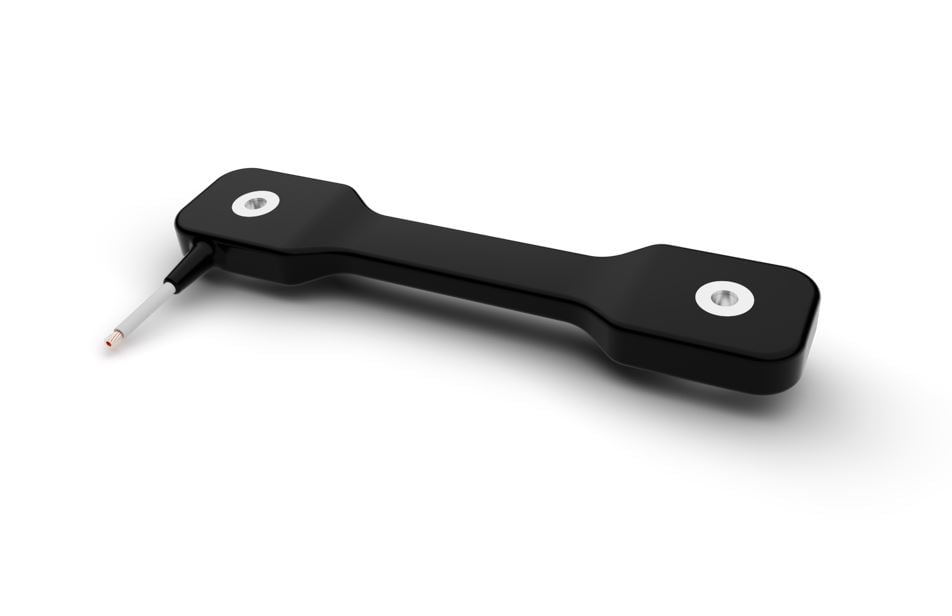

ES 20 Elastomere sensor

Elastomere sensor ES 20

Strain gauge sensor in high-performance elastomer for measuring cracks, strain, misalignment, deflection, etc.

  • Very robust solution IP68/IP69K
  • Measuring range 20mm
  • Resolution <4µm
  • Integrated signal conditioning unit
  • Direct 4...20mA/0...10V signal
  • Simple assembly/commissioning

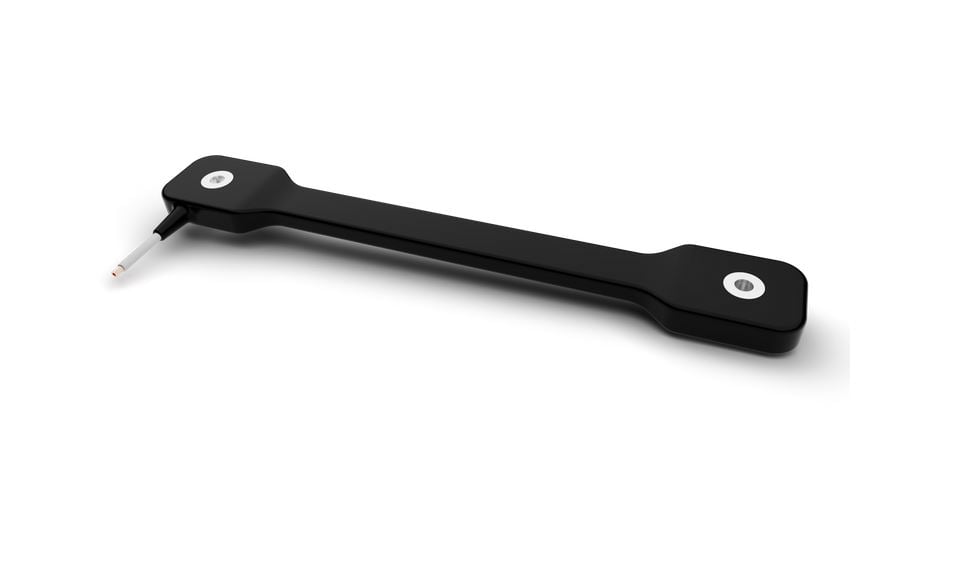

ES 50 Elastomersensor

Elastomere sensor ES 50

Strain gauge sensor in high-performance elastomer for measuring cracks, strain, misalignment, deflection, etc.

  • Very robust solution IP68/IP69K
  • Measuring range 50mm
  • Resolution <10µm
  • Integrated signal conditioning unit
  • Direct 4...20mA/0...10V signal
  • Simple assembly/commissioning

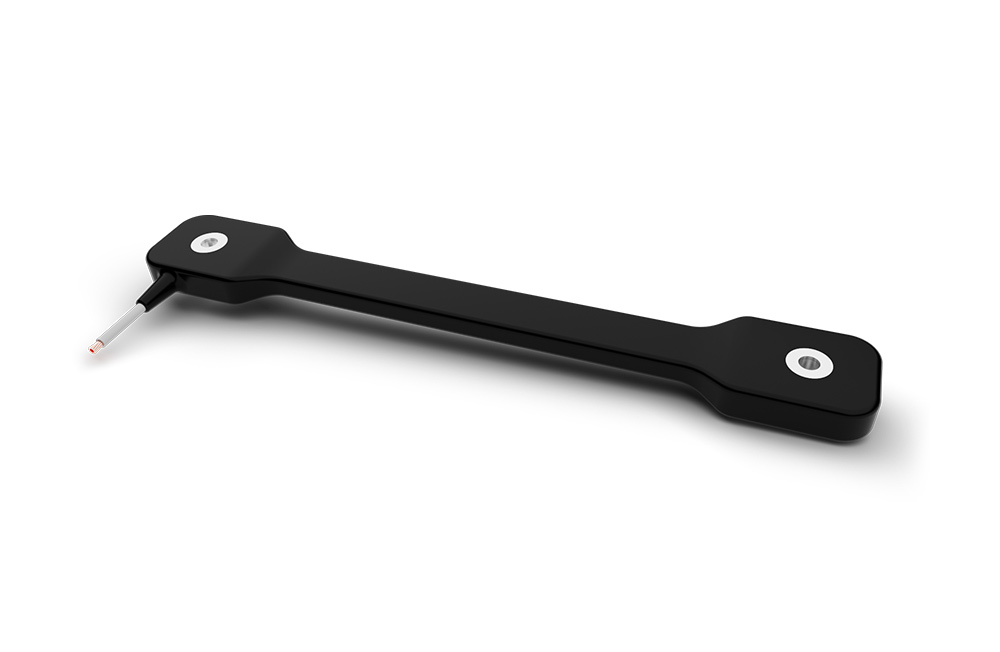

ES 100 Elastomersensor

Elastomere sensor ES 100

Strain gage sensor in high-performance elastomer for crack and strain monitoring in structural monitoring / building monitoring

  • Very robust solution IP68/IP69K
  • Measuring range 100mm
  • Resolution <20µm
  • Integrated signal conditioning unit
  • Direct 4...20mA/0...10V signal
  • Simple assembly/commissioning

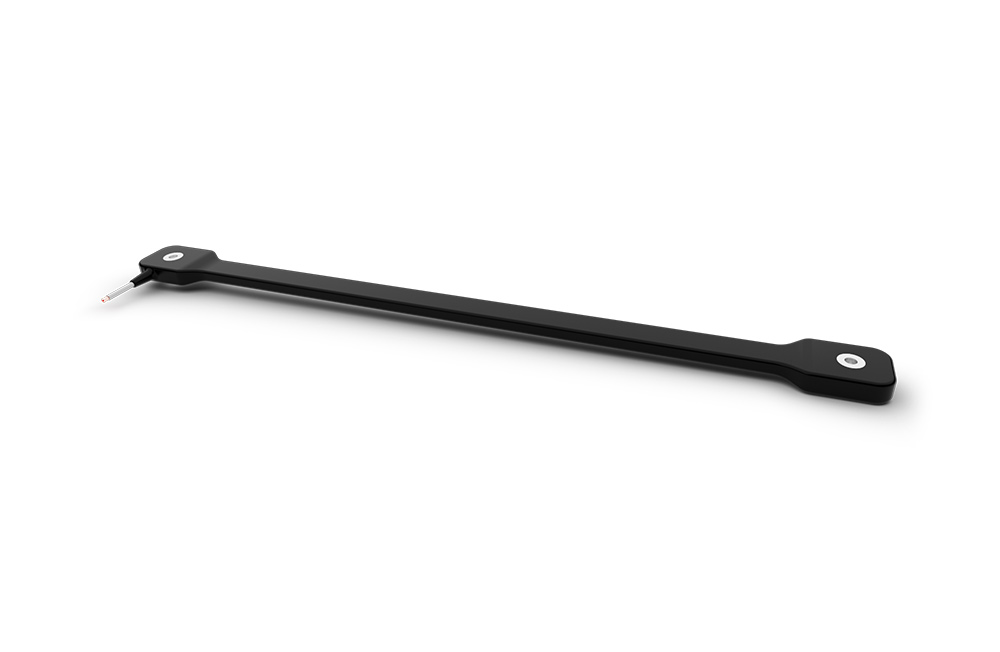

ES 250 Elastomersensor

Elastomere sensor ES 250

Strain gauge sensor in high-performance elastomer for measuring cracks, strain, misalignment, deflection, etc.

  • Very robust solution IP68/IP69K
  • Measuring range 250mm
  • Resolution <50µm
  • Integrated signal conditioning unit
  • Direct 4...20mA/0...10V signal
  • Simple assembly/commissioning
ES 500 Elastomere sensor

Elastomere sensor ES 500

Strain gauge sensor in high-performance elastomer for measuring cracks, strain, misalignment, deflection, etc.

  • Very robust solution IP68/IP69K
  • Measuring range 500mm
  • Resolution <100µm
  • Integrated signal conditioning unit
  • Direct 4...20mA/0...10V signal
  • Simple assembly/commissioning
