Piezo- and electrodynamic sensors

Vibration sensors for machine and condition monitoring as well as for building monitoring are available in various versions based on electrodynamic vibration elements and piezoresistive sensors. The diverse versions and areas of application range from classic machine monitoring / condition monitoring of turbomachinery and industrial plants to building monitoring, human vibration and triaxial sensors.

vibration sensor ls

Vibration sensor LS

  • Electrodynamic measuring principle
  • Measurement of bearing / housing vibration
  • Monitoring / Condition Monitoring
  • High signal strength / quality
  • Application up to 100°C / 200°C
piezo sensor ks

Piezo sensor KS

  • Robust PIEZO vibration sensors
  • IEPE excitation / 100mV/g
  • Measuring range ±55g to ±600g
  • Frequency range 0.13 ... 13kHz
  • Application -20 ... 120°C
ksi piezo sensor

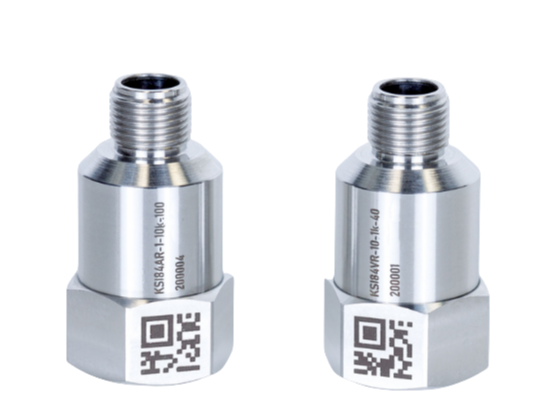

Piezo sensor KSI

  • Robust PIEZO vibration sensors
  • Integrated evaluation / current loop
  • 4 ... 20mA Output signal
  • Frequency range 0.13 ... 13kHz
  • Application -40 ... 100°C
vibration sensor vs

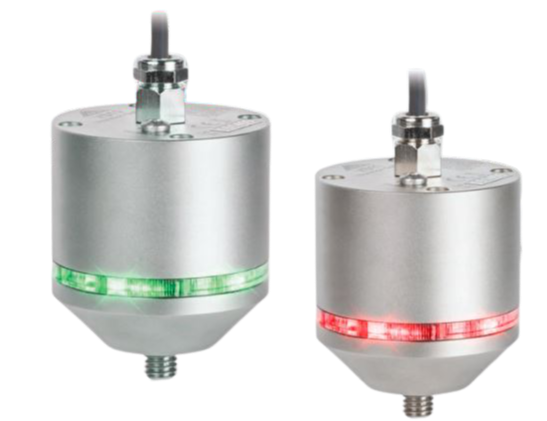

Vibrating switch VS

  • Monitoring / Condition Monitoring
  • RMS value / peak value / FFT
  • Relay output 60V / USB output
  • Parameterisable via USB interface
  • Application -40 ... 80°C
ks57 piezo charge carrier sensors

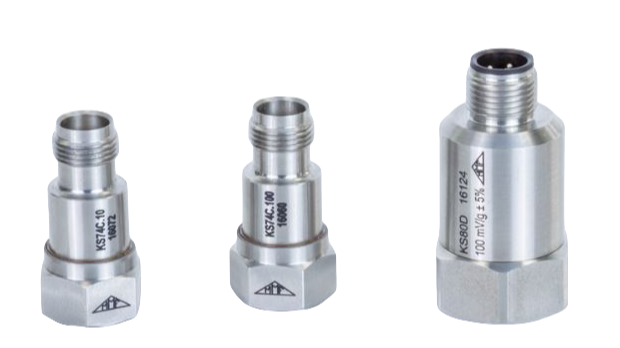

Piezo charge carrier sensors 250°C

  • Universal transducer Shear principle
  • Operating temperature up to 250°C
  • Stable with temperature change
  • Charge output, no auxiliary power
  • High dynamic range
Piezo triaxial sensors

Piezo triaxial sensors

  • Small dimensions
  • Excellent phase response
  • High resolution
  • Low temperature coefficient
  • For modal and structural analysis
