LVDT / LVIT sensors

At MESSOTRON you can obtain high-quality inductive LVDT / LVIT sensors specially matched to the requirements of your application, whether for everyday industrial applications or for use in extremely harsh environments. If you do not immediately find what you are looking for, please contact us.
Type
Application
Measuring range
Compressive strength
Electronics

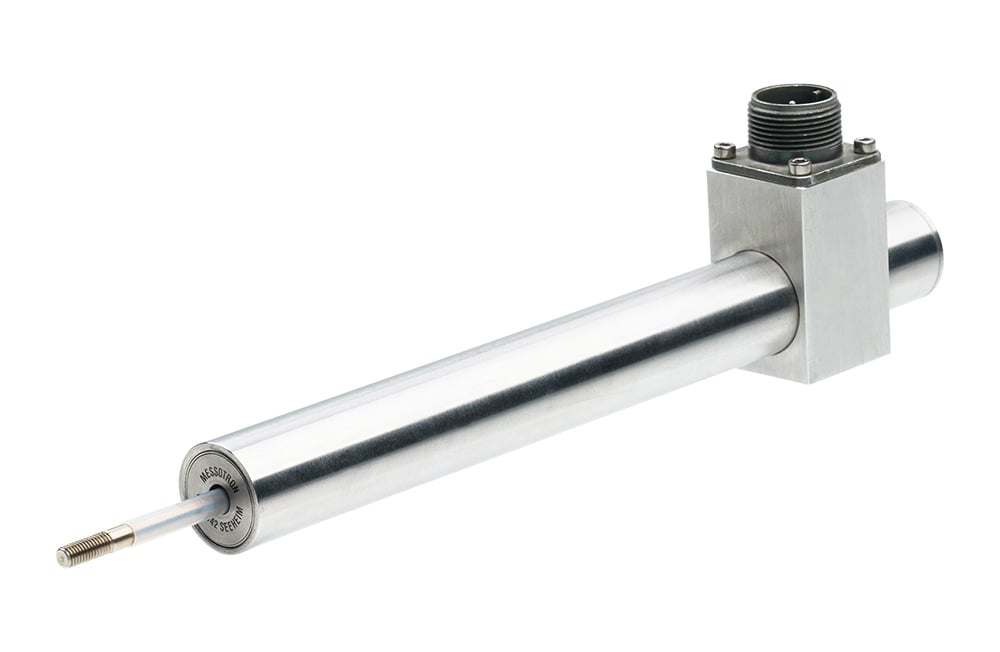

LVDT sensor DAA

LVDT sensor DAA

  • Nominal stroke: 25 mm to 1000 mm
  • Installation length: 145 mm to 1400 mm
  • Case diameter: 25 mm
  • Output signal: 4 mA to 20 mA
  • Operating temperature: 0 °C to +60 °C
  • IP 65 in the connector area, otherwise IP 67
LVDT sensor DAE

LVDT sensor DAE

  • Nominal stroke: 25 mm bis 1000 mm
  • Installation length: 145 mm bis 1400 mm
  • Case diameter: 5 mm
  • Output signal: 0 V bis 10 V
  • Operating temperature: 0 °C bis +60 °C
  • IP 65 in the connector area, otherwise IP 67

LVDT sensor DF

LVDT sensor DF

  • Nominal stroke: 6 mm up to 130 mm
  • Installation length: 70 mm up to 375 mm
  • Case diameter: 20 mm
  • Connections: Braided wire, axial cable
  • Carrier frequency: 5 kHz (option: 10 kHz)
  • Operating temperature: -20 ... 80 °C (option up to 120 °C)
  • Protection (DIN 40050): IP65

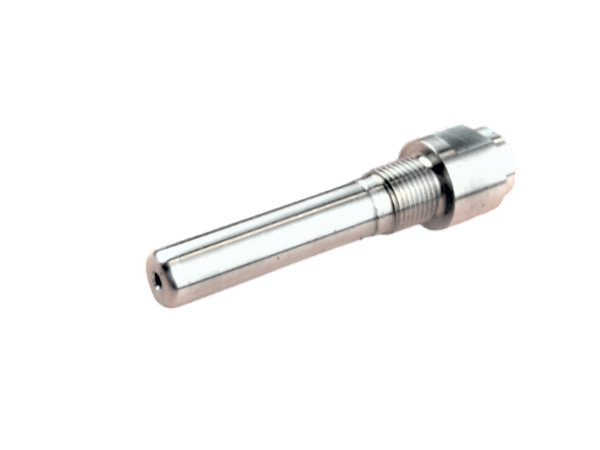

LVDT sensor DGB

LVDT sensor DGB

  • Nominal stroke: 25 mm bis 400 mm
  • Pressure resistance up to 300 bar
  • Housing diameter: 15 mm
  • Connection thread: M 18 x 1,5
  • Carrier frequency: 5 kHz , optional: 10 kHz
  • Operating temperature: -40 ... 80 °C (optionally up to 120 °C)
  • Safety class: IP 65, optional IP67

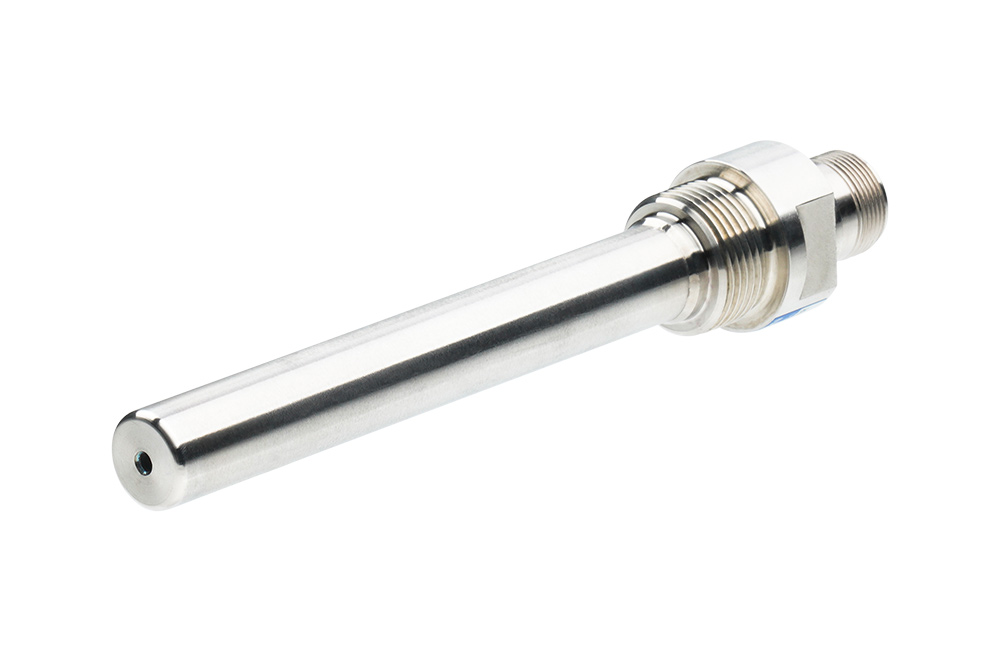

LVDT sensor DGO

LVDT sensor DGO

  • Nominal stroke: 25 mm up to 1000 mm
  • Pressure resistance: 450 bar standard
  • Case diameter: 20 mm
  • Carrier frequency: 5 kHz (option: 10 kHz)
  • Operating temperature: -40 ... 80 °C (optional up to 120 °C)
  • Safety class: IP 65
LVDT sensor DK

LVDT sensor DK

  • Nominal stroke: 2 mm up to 250 mm
  • Installation length: 30 mm up to 510 mm
  • Case diameter: 20 mm
  • Connections: Braided wire, axial cable, radial cable
  • Carrier frequency: 5 kHz (option: 10 kHz)
  • Operating temperature: -50 ... 80 °C
  • Safety class: IP 64

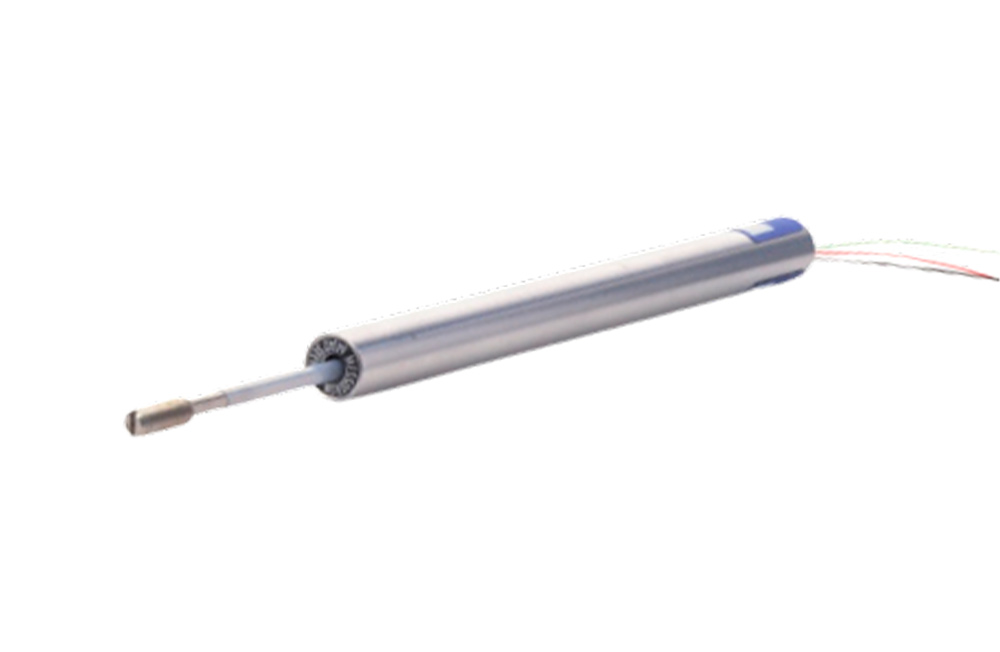

LVDT sensor DLH

LVDT sensor DLH

  • Nominal stroke: 50 mm up to 500 mm
  • Installation length: 100 mm up to 600 mm
  • Case diameter: 12 mm
  • Carrier frequency: 5 kHz (other frequencies on request)
  • Linearity: 0.5 %, 0.25 %, 0.1 %

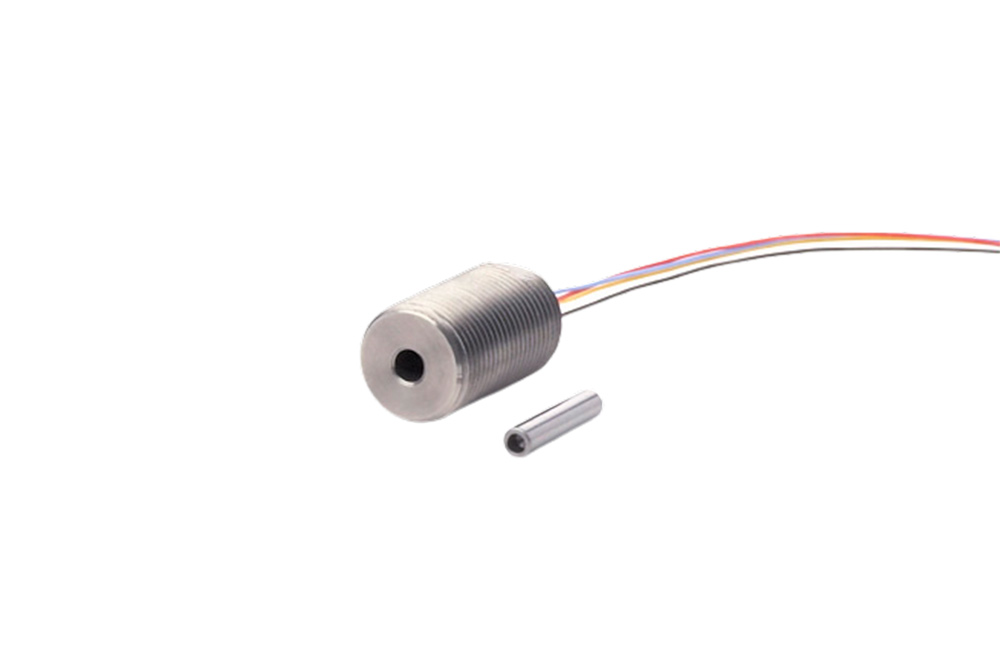

LVDT sensor DM

LVDT sensor DM

  • Nominal stroke: 16 mm
  • Installation length 35 mm
  • Case diameter: 20 mm
  • Connection: Leads, cable
  • Carrier freq.: 5 kHz
  • Operating temperature: -30 ... 100 °C
  • Protection: IP 68
LVDT sensor DOE

LVDT sensor DOE

  • Nominal stroke: 25 mm up to 1000 mm
  • Pressure resistance: 320 bar as standard
  • Case diameter: 20 mm
  • Symmetrical full bridge circuit LVDT
  • Connections: Radial cable / Radial connector
  • Operating temperature: 0 ... 60 °C
  • Protection class (DIN 40050): IP 65
LVDT sensor DOI

LVDT sensor DOI

  • Nominal stroke: 25 mm up to 1000 mm
  • Pressure resistance: 320 bar as standard
  • Case diameter: 20 mm
  • Symmetrical full bridge circuit LVDT
  • Connections: Radial cable / Radial connector
  • Operating temperature: 0 ... 60 °C
  • Protection class (DIN 40050): IP 65

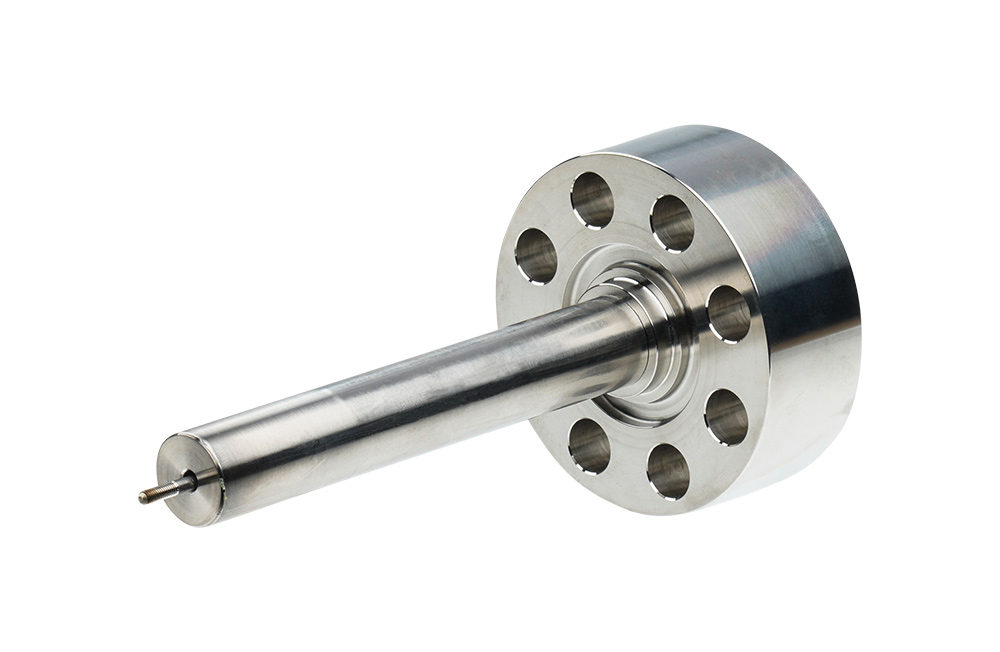

LVDT sensor DPA-H

LVDT sensor DPA-H

  • Nominal stroke: 25 mm up to 300 mm
  • Pressure resistance: 300 bar as standard
  • Case diameter: 18 mm
  • Operating temperature: -40 ... 80 °C (Option: up to 120 °C)

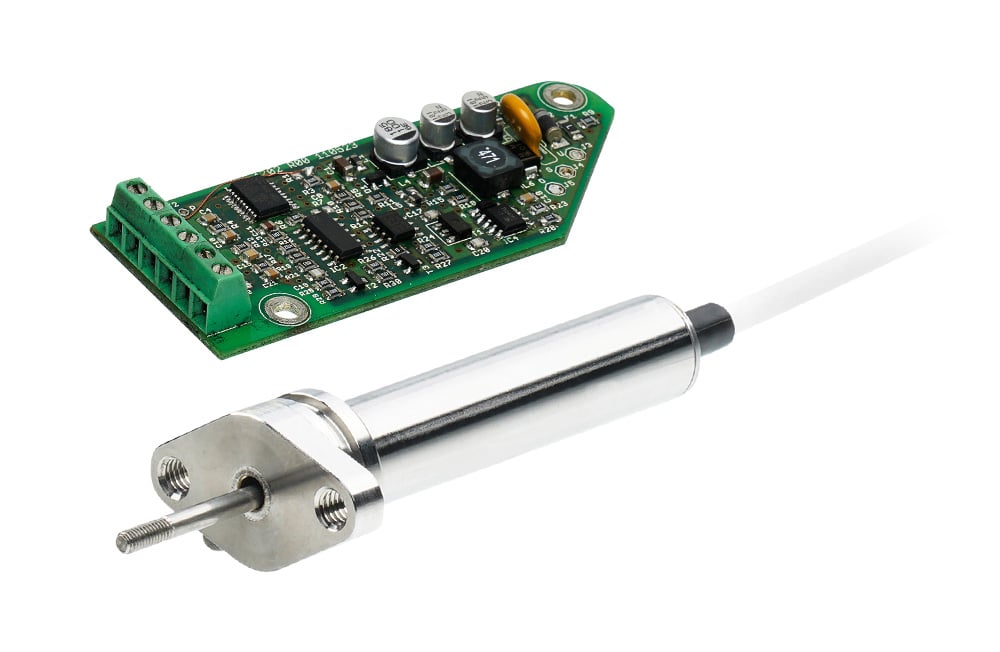

LVDT sensor DPF

LVDT sensor DPF

  • Nominal stroke: 16mm (other options possible)
  • Installation length: 74 mm (other options possible)
  • Case diameter: 14mm (other options possible)
  • Output signal: 0...V / 4 ... 20 mA
  • Output signal PWM: <0.4 VDC to >4.6 VDC
  • Operating temperature: 0 °C bis +80 °C
  • Protection class (DIN 40050): IP 65

LVDT sensor DPH

LVDT sensor DPH

  • Nominal stroke: 25 mm up to 300 mm
  • Installation length: 70 mm up to 740 mm
  • Case diameter: 20 mm
  • Connections: Radial cable, Axial connector
  • Operating temperature: -40 ... 80 °C (Option: up to 120 °C)
  • Protection class (DIN 40050): IP 65

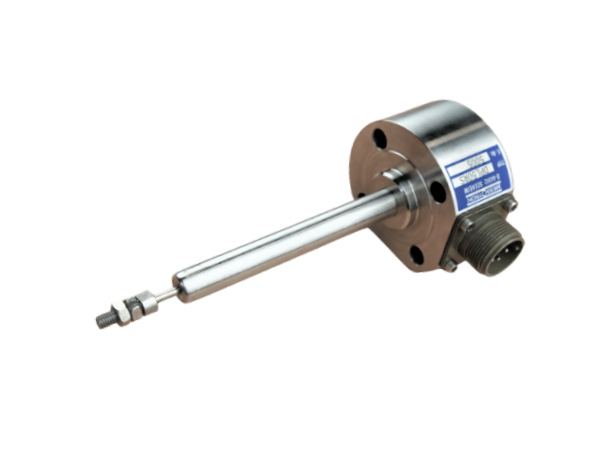

LVDT sensor DPL

LVDT sensor DPL

  • Nominal stroke: 50 mm up to 400 mm
  • Pressure resistance: 200 bar
  • Case diameter: 12 mm
  • Symmetrical full bridge circuit LVDT
  • Connections: Radial cable, radial connector, axial connector
  • Operating temperature: -40 ... 80 °C (option: up to 120 °C)
  • Protection class (DIN 40050) : IP 65

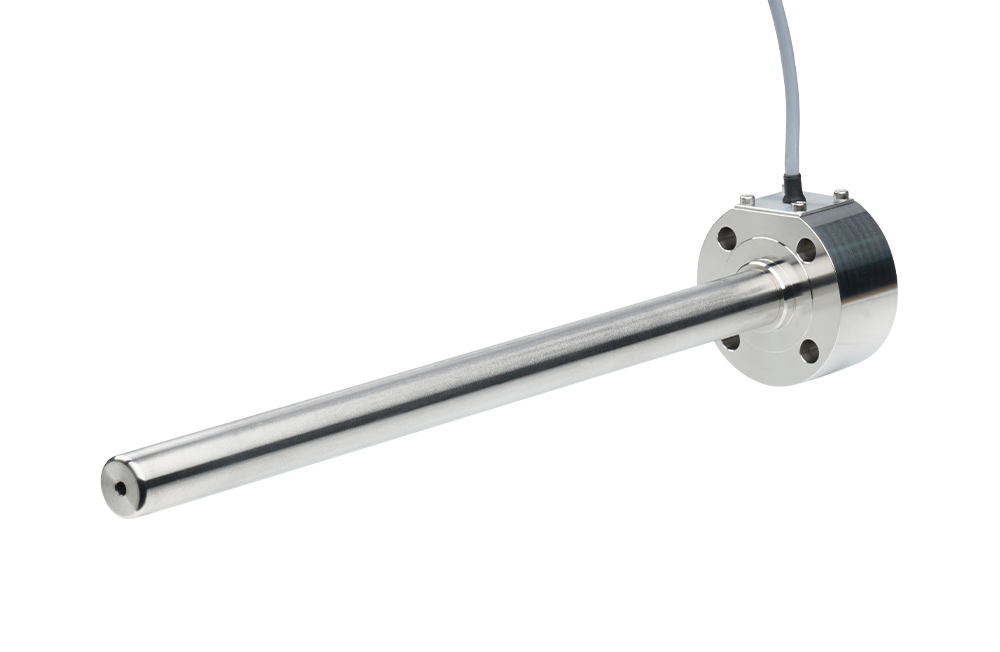

LVDT sensor DPO

LVDT sensor DPO

  • Nominal stroke: 25 mm to 1000 mm
  • Pressure resistance: 320 bar as standard
  • Case diameter: 20 mm
  • Symmetrical full bridge circuit LVDT
  • Connections: Radial cable, radial connector, axial connector
  • Operating temperature: -40 ... 80 °C (option: up to 120 °C)
  • Protection class (DIN 40050): IP 64

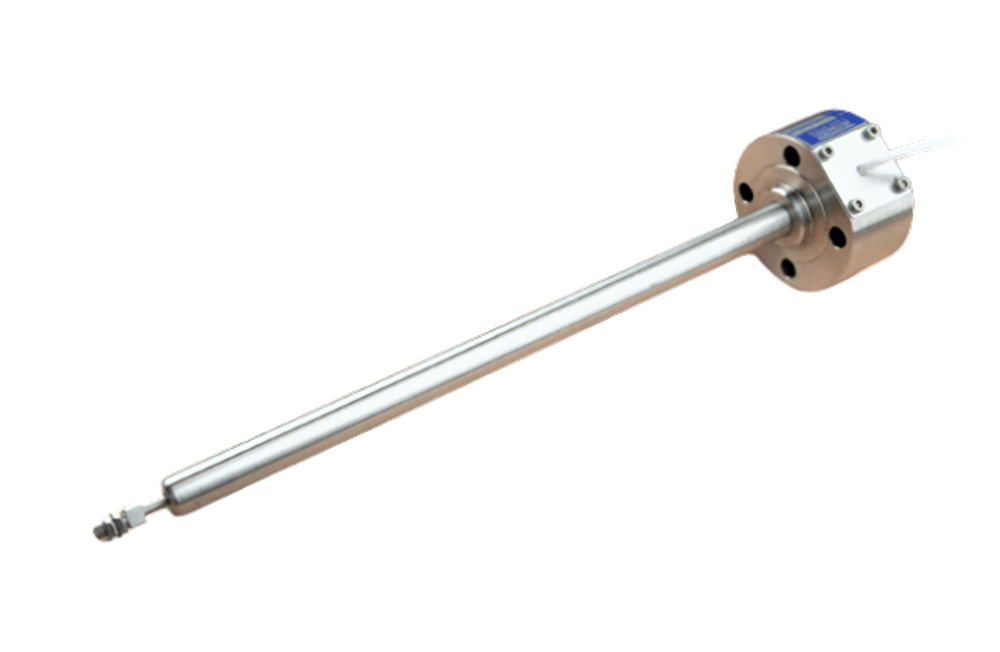

LVDT sensor DPU

LVDT sensor DPU

  • Nominal stroke: 25 mm up to 1000 mm
  • Pressure resistance: 200 bar
  • Case diameter: 18 mm
  • Symmetrical full bridge connection LVDT
  • Connections: Radial cable, radial connector, axial connector
  • Operating temperature: -40 ... 80 °C (option: up to 120 °C)
  • Protection class (DIN 40050): IP 64
LVDT sensor DT

LVDT sensor DT

  • Nominal stroke: 2 mm to 100 mm
  • Fitting length 110 mm to 465 mm
  • Housing diameter: 20 m
  • Connection variants: Cable (axial), Axial connector (axial)
  • Operating temperature: -50 ... 80 °C
  • Protection class: IP 64
LVDT sensor DTC

LVDT sensor DTC

  • Nominal stroke: 20 mm up to 100 mm
  • Installation length: 195 mm up to 435 mm
  • Case diameter: 25 mm

  • Plunger diameter: 3mm
  • Operating temperature: -50 °C to +120 °C
  • IP 54

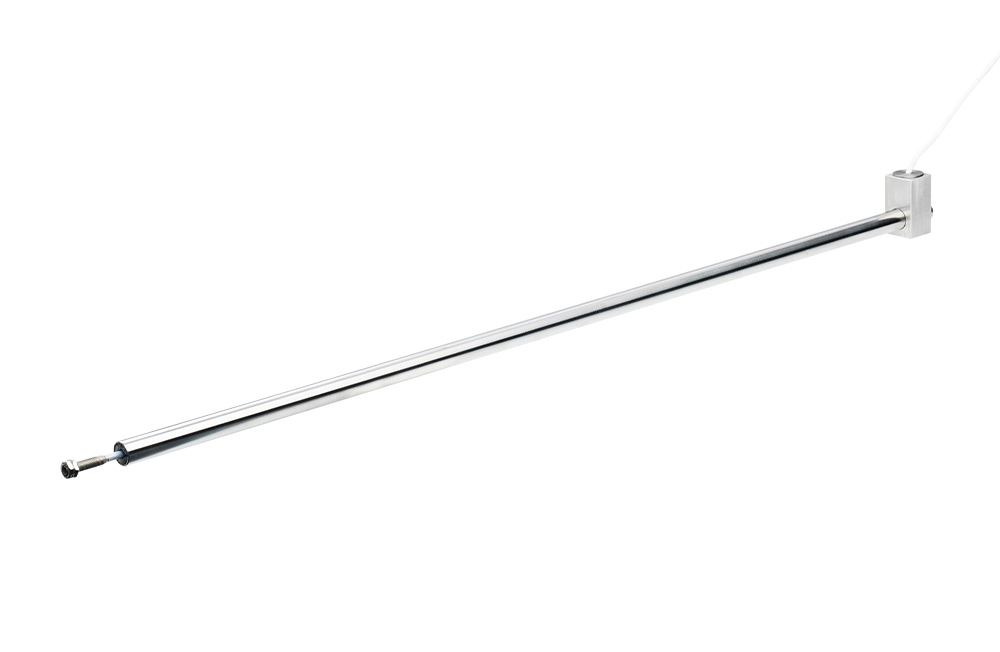

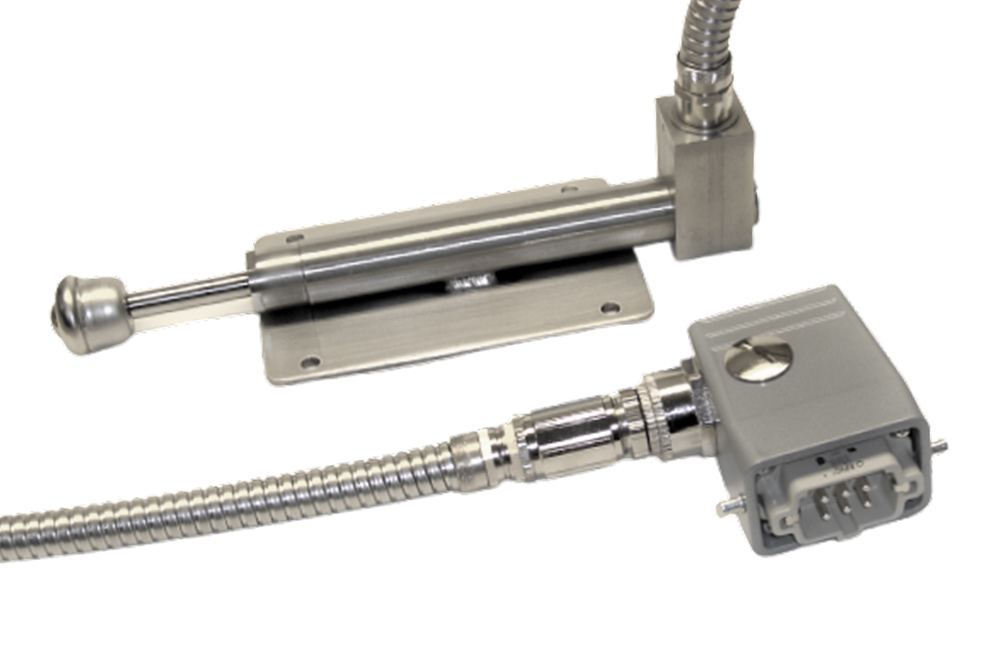

LVDT / LVIT sensor DTK 50 AE

LVDT / LVIT sensor DTK 50 AE

  • Nominal stroke: 50 mm to 100 mm
  • Case diameter: 25 mm
  • Operating temperature: Probe sensor: 0 °C ... +120 °C, electronics: 0 °C ... +60 °C
  • Probe: IP 64, electronics: IP 62 (plugged)

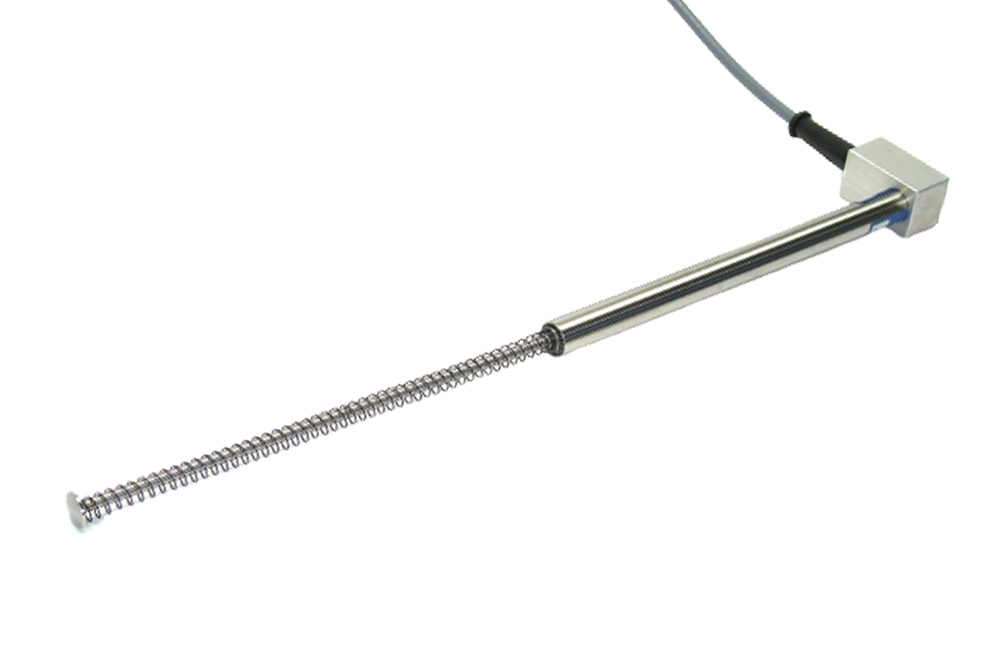

LVDT sensor DTL

LVDT sensor DTL

  • Nominal stroke: 50 mm up to 200 mm
  • Installation length: 150 mm up to 310 mm
  • Case diameter: 3 mm
  • Connections: Braided wire, cable (axial, radial), connector (axial, radial)
  • Carrier frequency: 5 kHz
  • Operating temperature: -40 ... 80 °C, option: up to 120 °C
  • Protection class (DIN 40050): IP 64

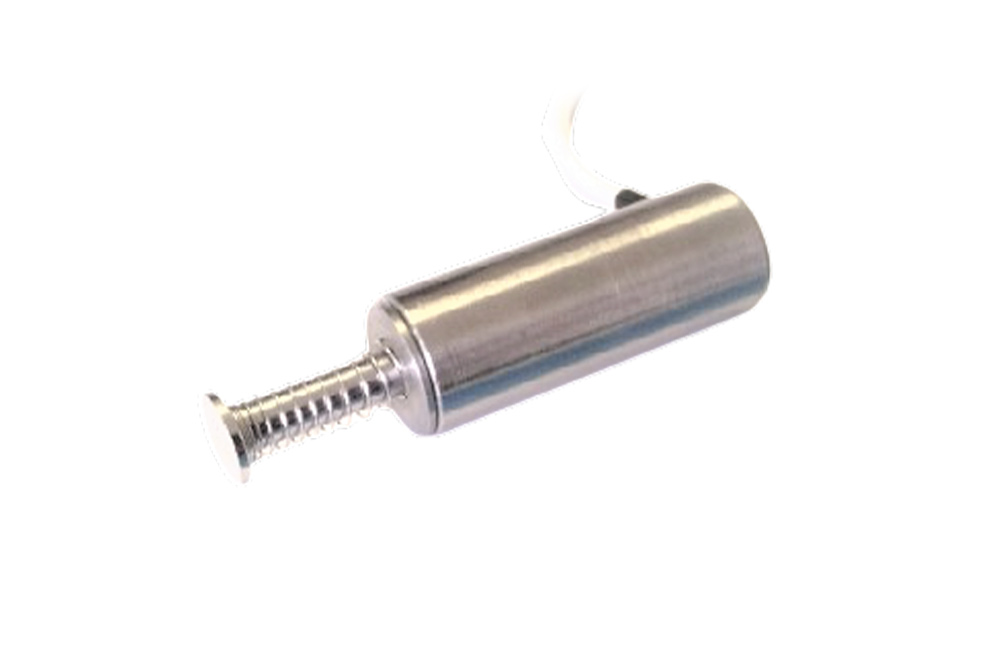

LVDT sensor DTU

LVDT sensor DTU

  • Nominal stroke: 8 mm
  • Installation length: 42 mm
  • Case diameter: 5 mm
  • Connections: Radial cable
  • Carrier frequency: 5 kHz
  • Operating temperature: -30 ... 80 °C
  • Protection class (DIN 40050): IP 65

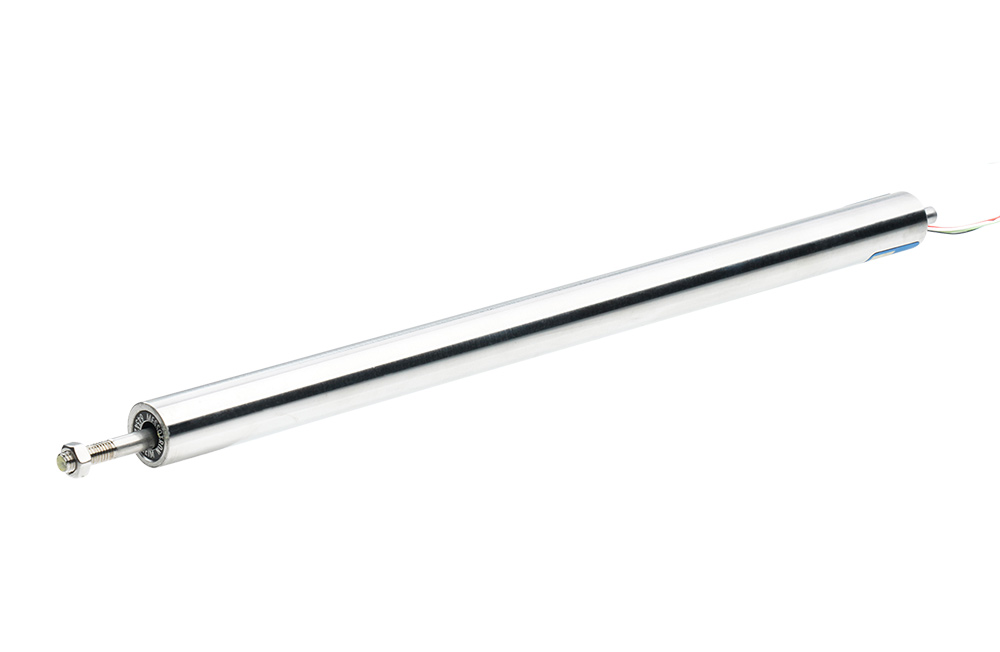

LVDT sensor DU

LVDT sensor DU

  • Nominal stroke: 15 mm up to 1000 mm
  • Installation length: 70 mm up to 1420 mm
  • Case diameter: 14 mm
  • Operating temperature: -40 °C to +80 °C (option: up to 120 °C)
  • Protection class (DIN 40050): IP 64

LVDT sensor DUH

LVDT sensor DUH

  • Nominal stroke: 50 mm up to 500 mm
  • Installation length: 100 mm up to 600 mm
  • Case diameter: 16 mm, core diameter 3mm or 5mm
  • Connections: Braided wire, cable (axial, radial), connector (axial, radial)
  • Carrier frequency: 5 kHz
  • Protection class (DIN 40050): IP 64
  • Operating temperature: -40 ... 80 °C, option: up to 120 °C
  • Optionally integrated eletronics and spring loaded versions

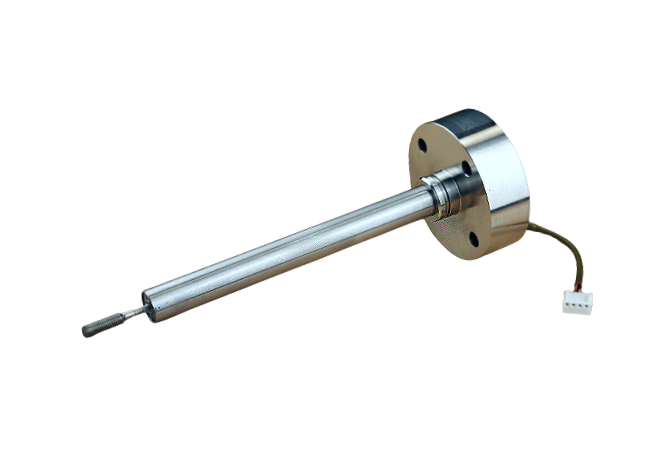

LVDT sensor DUR

LVDT sensor DUR

  • Nominal stroke: 25 mm up to 1000 mm
  • Installation length: 80 mm up to 1420 mm
  • Case diameter: 14 mm
  • Operating temperature: -40 °C to +80 °C (option: up to 120 °C)
  • IP 64

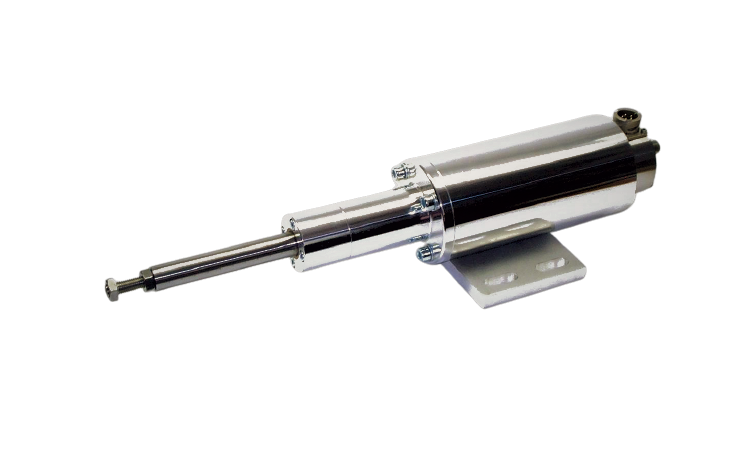

LVDT sensor VMI

LVDT sensor VMI

  • Nominal stroke: 50 mm to 100 mm
  • Mechanical stroke: 52 mm to 105 mm
  • Case diameter: 3 mm
  • Operating temperature: 0 ... 70 °C
  • Protection class (DIN 40050): IP 64
LVDT sensor WA

LVDT sensor WA

  • Nominal stroke: 60 mm up to 1000 mm
  • Mechanical stroke: 70 mm up to 1100 mm
  • Case diameter: 16/13 mm
  • Operating temperature: 0 ... 60 °C
  • Protection class (DIN 40050): IP 65
LVDT sensor WE

LVDT sensor WE

  • Nominal stroke: 60 mm to 1000 mm
  • Case diameter: 16/13 mm
  • Operating temperature: 0 °C to +60 °C
  • IP 65
  • Coil circuit: Half bridge
LVDT sensor WI

LVDT sensor WI

  • Nominal stroke: 60 mm up to 1000 mm
  • Mechanical stroke: 70 mm up to 1100 mm
  • Case diameter: 16/13 mm
  • Operating temperature: 0 ... 60 °C
  • Protection class (DIN 40050): IP 65
  • Pressure resistant up to 320 bar

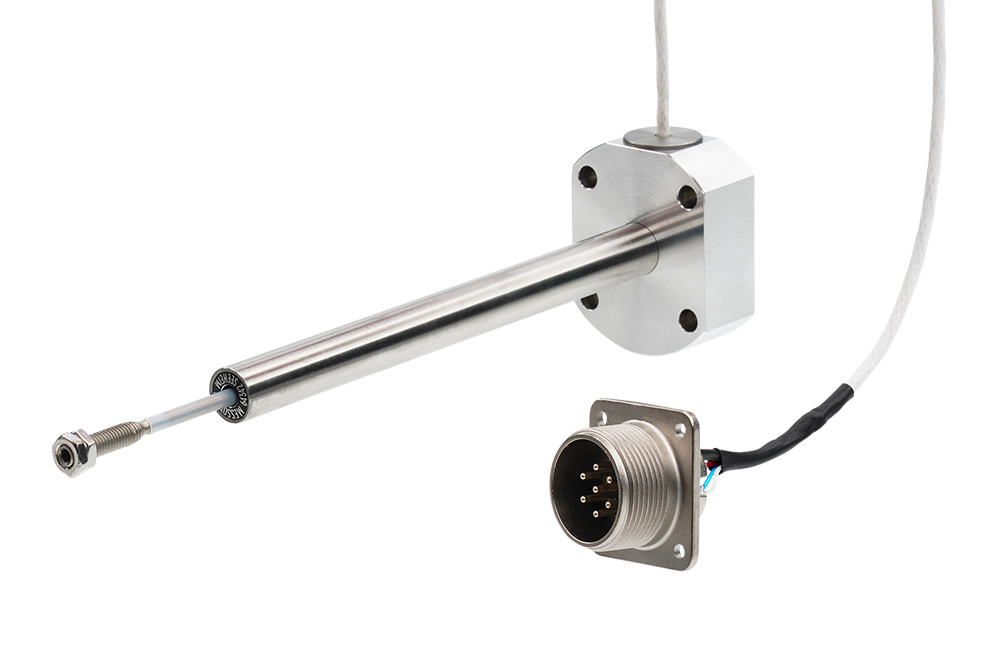

LVDT sensor WLC

LVDT sensor WLC

  • Nominal stroke: 10 mm up to 500 mm
  • Mechanical stroke: 10mm up to 268 mm
  • Case diameter: 12 mm
  • Operating temperature: -55 ... 100 °C
  • Protection class (DIN 40050): IP 64

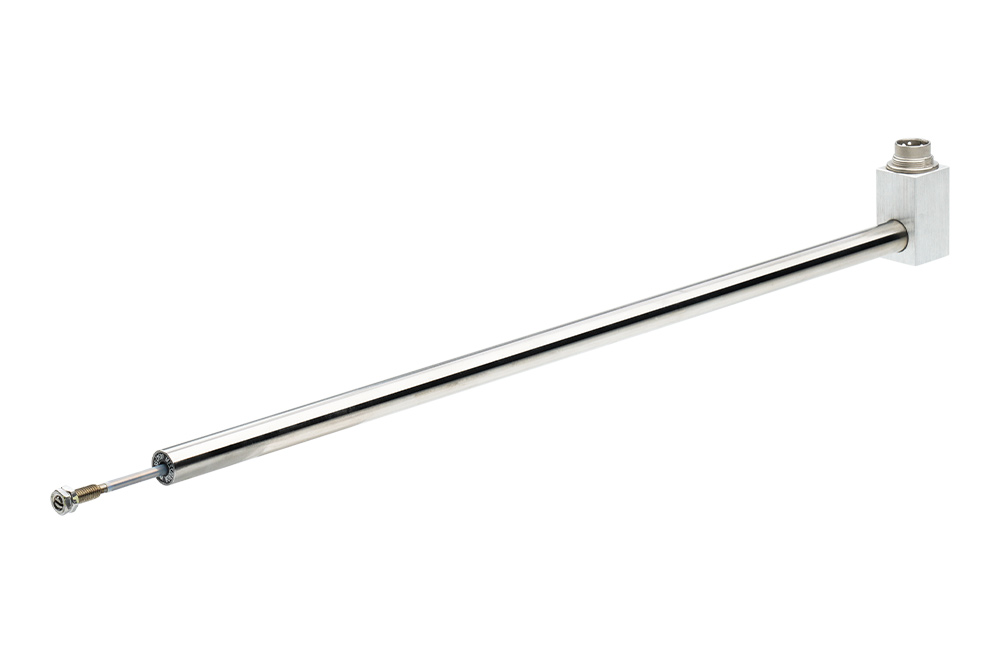

LVDT sensor WLG

LVDT sensor WLG

  • Nominal stroke: 10 mm up to 500 mm
  • Mechanical stroke: 10 mm up to 258 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, optional up to 120 °C
  • Protection class (DIN 40050): IP 64
LVDT sensor WLH

LVDT sensor WLH

  • Nominal stroke: 10 mm up to 500 mm
  • Mechanical stroke: 2 mm up to 258 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, option: up to 120 °C
  • Protection class (DIN 40050): IP 64

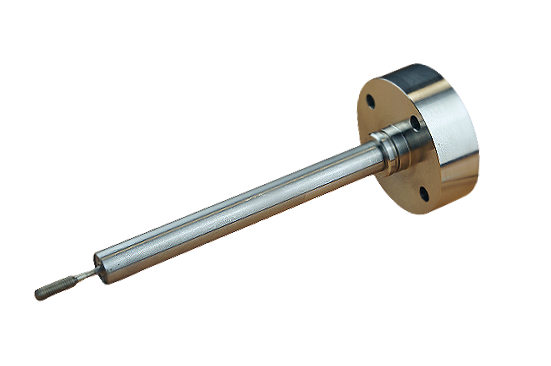

LVDT sensor WLR

LVDT sensor WLR

  • Nominal stroke: 10 mm up to 500 mm
  • Mechanical stroke: 20 mm up to 516 mm
  • Symmetrical half-bridge circuit LVIT
  • Operating temperature: -50 ... 80 °C, option: up to 120 °C
  • Case diameter: 12 mm
  • Protection (DIN 40050): IP 64

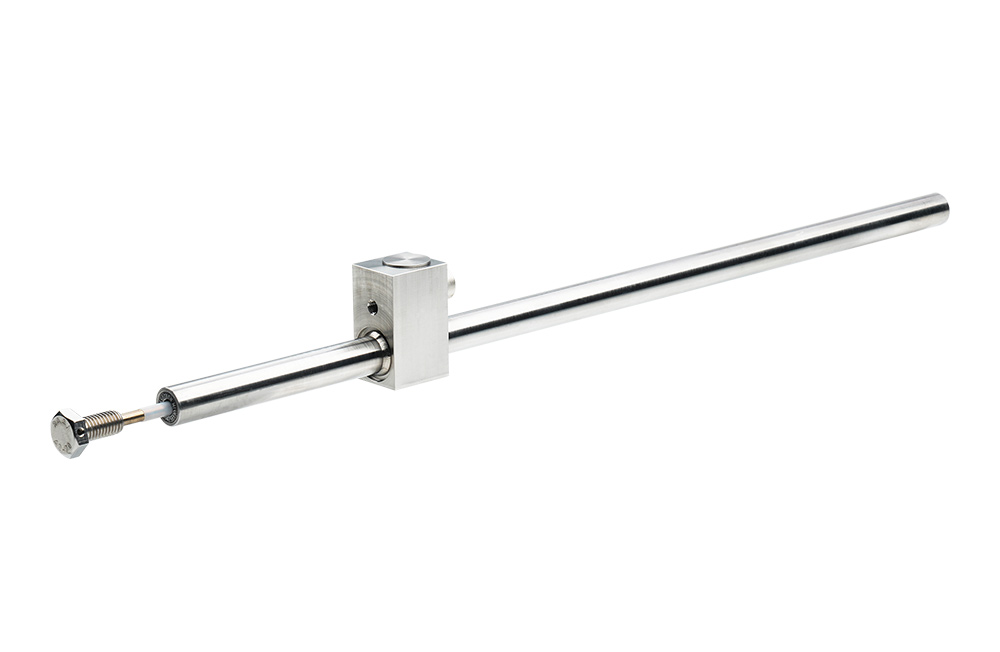

LVDT sensor WLU

LVDT sensor WLU

  • Nominal stroke: 100 mm up to 300 mm
  • Mechanical stroke: 55 mm up to 185 mm
  • Case diameter: 16 mm
  • Operating temperature: -50 ... 120 °C, briefly up to 150 °C
  • Protection class (DIN 40050): IP 65

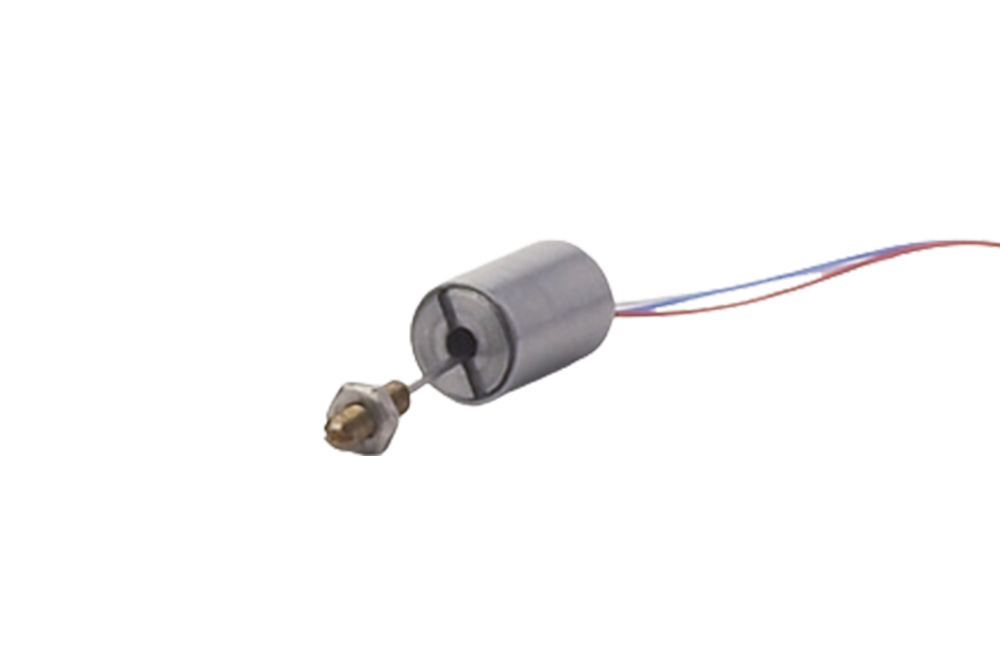

LVDT sensor WM

LVDT sensor WM

  • Nominal stroke: 1 mm up to 2 mm
  • Mechanical stroke: 3 mm
  • Case diameter: 10 mm
  • Operating temperature: -50 ... 80 °C
  • Protection class (DIN 40050): IP 64

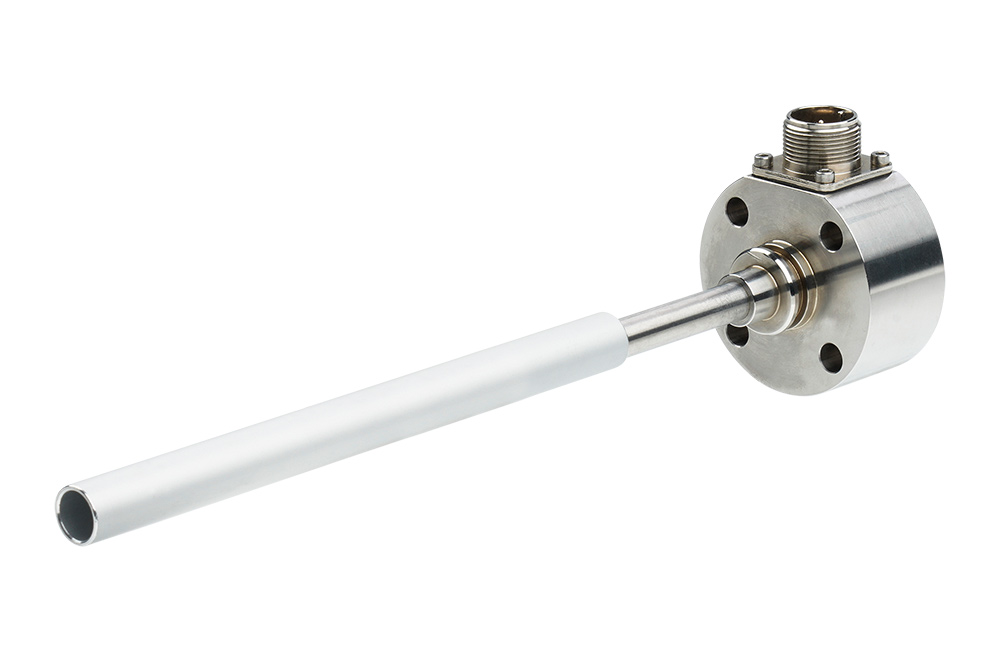

LVDT sensor WP

LVDT sensor WP

  • Nominal stroke: 60 mm bis 1000 mm
  • Mechanical stroke: 70 mm bis 1100 mm
  • Case diameter: 11 mm
  • Operating temperature: -20 ... 80 °C, Option bis 120 °C
  • Protection: IP 65
  • Pressure resistance 320 bar

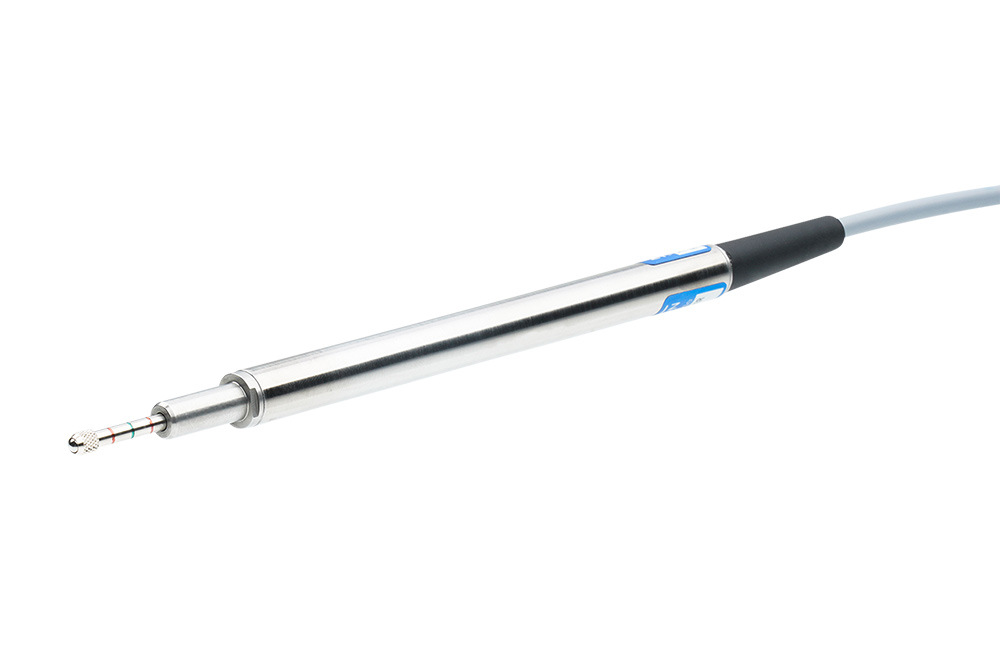

LVDT sensor WT / WTA

LVDT sensor WT / WTA

  • Nominal stroke: 2 mm up to 100 mm
  • Mechanical stroke: 1.6 mm up to 52 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, option up to 120 °C
  • Protection class (DIN 40050): IP 54

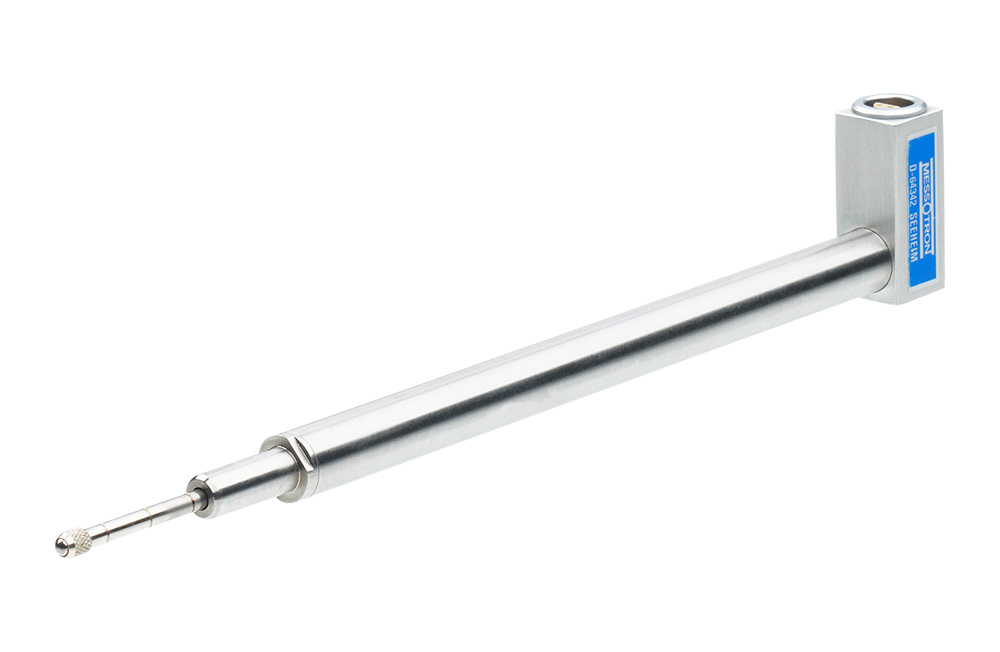

LVDT sensors WTG / WTH

LVDT sensors WTG / WTH

  • Nominal stroke: 2 mm up to 100 mm
  • Mechanical stroke: 1.5 mm up to 52 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, option up to 120 °C
  • Protection class (DIN 40050): IP 54
LVDT sensor WU

LVDT sensor WU

  • Nominal stroke: 100 mm up to 1000 mm
  • Mechanical stroke: 120 mm 1020 mm
  • Case diameter: 20 mm
  • Operating temperature: -20 ... 80 °C
  • Protection class (DIN 40050): IP 26
