LVDT sensor DUH

Extremely short inductive universal displacement transducer for measuring ranges up to 500mm, suitable for numerous industrial applications in hydraulic cylinders, valves, production, testing and especially in testing machines and mechanical engineering. The displacement transducer with a housing diameter of 16mm and a 5mm core has a coil unit with fully symmetrical coil design according to a regular LVDT differential transformer principle / full bridge circuit with very good linearity. The excellent ratio of measuring range to overall length allows installations even in confined spaces with up to 40% space saving.

Versions with different connections of plugs and cables as well as for operation of increased temperature and dynamics are available.

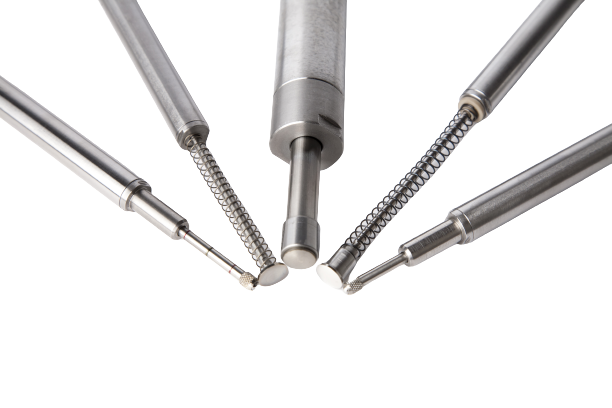

Additionall there are options with integrated electronics and with guided core to be used as a gauge / sprong loaded LVDT transducer.

		DUH 50	DUH 100	DUH 200	DUH 300	DUH 400	DUH 500
Nominal stroke	mm	±25	±50	±100	±150	±200	±250
Mechanical stroke	mm	55	105	210	320	420	520
Dimension A*	mm	55	80	135	190	240	290
Dimension B	mm	100	160	260	370	480	600
Body diameter D	mm	16 ±0,1
Core diameter d	mm	5.6 incl. PTFE coating¹⁾
Sensor weight (approx.)	g	100	150	240	340	450	560
Core weight (approx.)	g	20	28	45	60	78	94
Nominal output @ 5 kHz**	mV/V	107	140	163	175	160	162

		DUH 50 ... 500
Carrier frequency *		5 kHz
Recommended measuring amplifier		z.B. MBI 46.31
Excitation voltage (eff.)		bis 5 VAC
Linearity *		< ±0,5 % F.S.O. Option: ±0,25 %; 0,1 % (nicht DUH 50)
Temperature coefficient of zero		±0,1 % / 10 K
Temperature coefficient of span		±0,2 % / 10 K
Operating temperature*		-40°C ... +80°C, optional: up to 120°C (not 0,1% linearity)
Protection class (DIN 40050)		IP 64

		Abbr.	DUH	DUH
Stroke	see technical data		50 ... 500	50 ... 200
Connection	Leads	none	AWG 30	AWG 30
	Axial cable ¹⁾	K
	Radial cable ¹⁾	Q
	Axial conn. ²⁾	LX
	Radial conn. ²⁾	R		--
	Radial conn. (reinforced) ²⁾	RS	--
Linearity (FSO)	0,5 %
	0,25 %
	0,1 %
Options	High operating temperature ¹⁾	/120 °C	--	optional
Options	Customised dimension A	/Axx	optional	optional

	Litze	K / Q	R	RS	LX
Type of connection	PTFE leads 250 mm long	PE-cable 2,5 m long Option: PTFE cable	Amphenol C 091 connector (Mating plug supplied)	Amphenol 3102 A connector (Mating plug supplied)	LEMO ERA.1S.304.CLL
Pin configuration
Power supply +	White	White	2	B	2
Power supply -	Blue	Blue	3	C	3
Measuring signal +	Red	Red	1	A	1
Measuring signal -	Black	Black	4	D	4
Mating connector (supplied)	--	--	Amphenol C 091	Amphenol 3106 A	LEMO FFA.1S.304.CLA 57

LVDT sensor DUH

Important features

Technical data

Properties

Model list

Do you have further technical questions about the product?

Dimensional drawings / Connection variants

Leads ( )

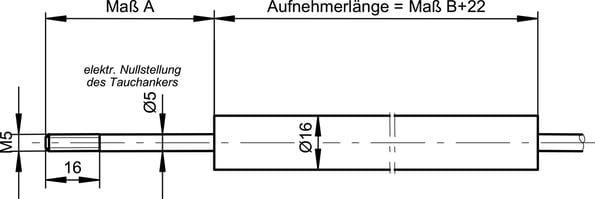

Axial cable (K)

Radial cable (Q)

Radial connector (R)

Radial connector (RS)

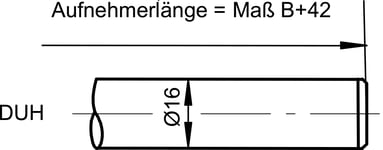

Axial connector (LX)

Electrical connection

Downloads

Product data sheet

Installation / technical information

Product group overview

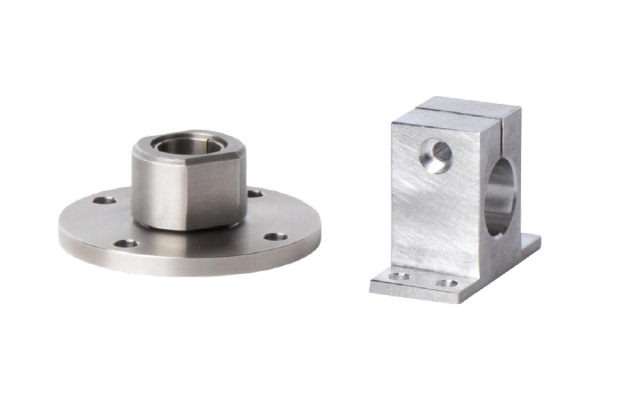

Accessories

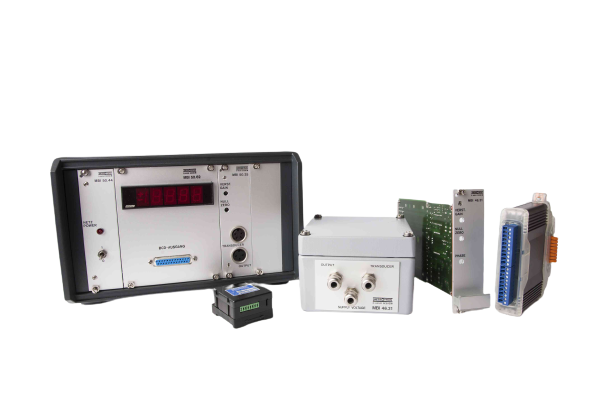

Measuring amplifiers

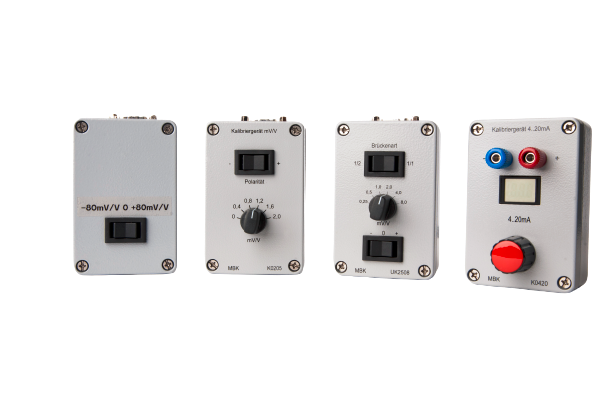

Calibrators
