Designed for industrial use, the very robust and modularly constructed encoders / rotary encoders prove themselves with their numerous variation and equipment options. The parameters to be selected include housing shape, connecting flange, shaft type and diameter, plug or cable outlet and the data interface. Numerous standard interfaces such as SSI, RS485, CANopen, Profinet and Profibus are available.

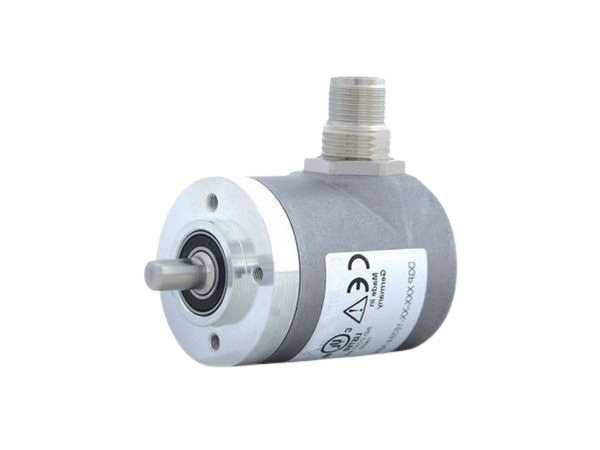

Absolute rotary encoder MDG 36 A (standard)
Absolute encoder Ø36mm
Modern Hall technology Magnet
Singleturn 16bit / Multiturn 43bit
CANopen, SSI, RS485 interface
Solid shaft 6mm, 6,35mm, 8mm

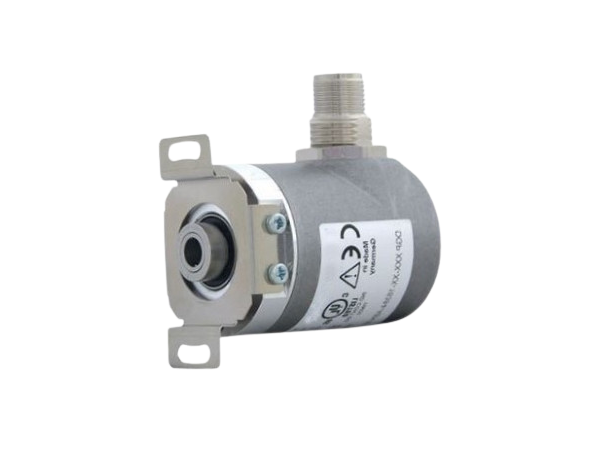

Absolute rotary encoder MDG 36 E (hollow shaft)
Absolute encoder Ø36mm
Modern Hall technology Magnet
Singleturn 16bit / Multiturn 43bit
CANopen, SSI, RS485 interface
Hollow shaft 6mm, 6,35mm, 8mm

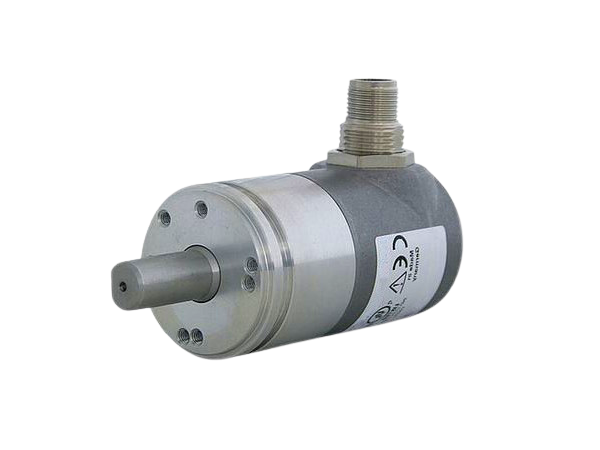

Absolute rotary encoder MDG 36 J (Heavy Duty)
Absolute encoder Ø36mm
Protection class IP67/IP69K
Singleturn 16bit / Multiturn 43bit
CANopen, SSI, RS485 interface
Shaft 10mm for heavy shaft loads
MDG-P 36 incremental rotary encoder (standard)
Up to 16,385 pulses/revolution
Modern Hall technology
Output frequency up to 1 MHz
Reverse polarity and short circuit protection
Solid shaft 6mm, 8mm, 10mm

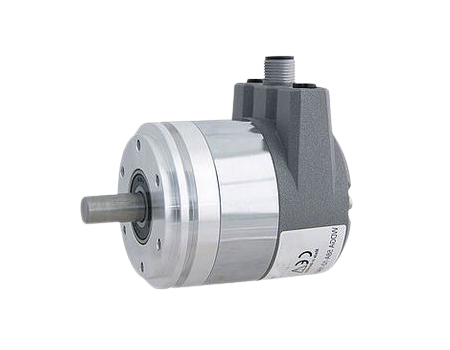

Absolute Rotary Encoder MDG 58 A (BUS System)
Absolute rotary encoder
Modern Hall technology
Singleturn 16bit / Multiturn 43bit
CANopen, SSI, RS485 interface
Hollow shaft 6mm, 6,35mm, 8mm

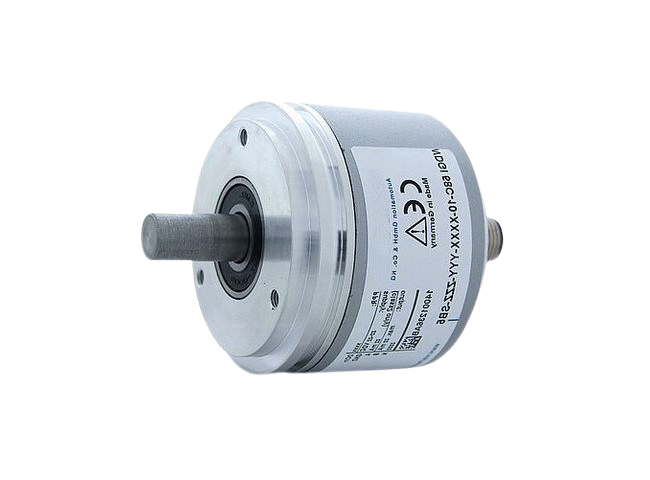

Incremental Rotary Encoder MDG 58 E (Standard)
Optical incremental encoder
Robust industrial standard, Ø58mm Up to 25,000 pulses/revolution CANopen interface Synchro flange
