LVDT sensor DTL
Extremely short inductive displacement transducer for measuring ranges up to 200mm for numerous industrial applications in production, inspection, quality assurance, testing and laboratory. The Probe sensor with Case diameter 12mm and external spring has a coil unit with fully symmetrical coil design according to the LVDT differential transformer principle / full bridge circuit. Variants with different connection versions of plugs and cables as well as for operation of increased temperature are available.
Special versions with integrated electronics according to customer specifications are possible.
Special versions with integrated electronics according to customer specifications are possible.
Important features
- Nominal stroke: 50 mm up to 200 mm
- Installation length: 150 mm up to 310 mm
- Case diameter: 3 mm
- Connections: Braided wire, cable (axial, radial), connector (axial, radial)
- Carrier frequency: 5 kHz
- Operating temperature: -40 ... 80 °C, option: up to 120 °C
- Protection class (DIN 40050): IP 64
Technical data
DTL 50 | DTL 100 | DTL 200 | ||
Nominal stroke | mm | ±25 | ±50 | ±100 |
Mechanical stroke | mm | 52 | 102 | 205 |
Dimension A | mm | 57 | 102 | 205 |
Dimension B | mm | 150 | 210 | 310 |
Body diameter d | mm | 12 h9 | ||
Core diameter d | mm | 3 | ||
Sensor weight (approx.) | g | 130 | 160 | 200 |
Core weight (approx.) | g | 10 | 15 | 25 |
Nominal output @ 5 kHz* | mV/V | 133 | 135 | 125 |
* indicative figures only, determined phase-independent
Properties
DTL 50 ... 200 | |||||||
Carrier frequency | 5 kHz | ||||||
Recommended measuring amplifier | MBI 46.31 / 46.32 | ||||||
Excitation voltage (eff.) | Recommended: 1 ... 5 Vac | ||||||
Linearity error* | ±0,5 % F.S.O. Option: ±0,25 % |
||||||
Temperature coefficient of zero | ±0,1 % / 10 K | ||||||
Temperature coefficient of span | ±0,2 % / 10 K | ||||||
Operating temperature* | -40 °C ... +80 °C, Option: bis 120 °C | ||||||
Protection class (DIN 40050) | IP 64 |
* Specify options on order
Model list
Abbr. | DTL | DTL | ||
Stroke | See specification | 50 ... 200 | 50 ... 200 | |
Connection | Leads | none | AWG 30 | AWG 30 |
Axial cable 1) | K | |||
Radial cable 1) | Q | |||
Axial connector 2) | LX | |||
Radial connector 2) | R | -- | ||
Radial connector 2) | RS | -- | ||
Linearity (FSO) | 0,5 % | |||
0,25 % | ||||
Options |
High operating temperature 1) | /120 °C | -- | optional |
Teflon cable (instead of PE) | /TF | optional | optional | |
80 mV/V nominal output | /80mVV | optional | -- |
1) Standard: PE-cable, for 120°C option: Teflon-cable
2) Mating connector supplied
Do you have further technical questions about the product?
We will be happy to help you determine the order code and provide you with further specific information for your required product.
Dimensional drawings / Connection variants
Leads ( )
Core channel continuous

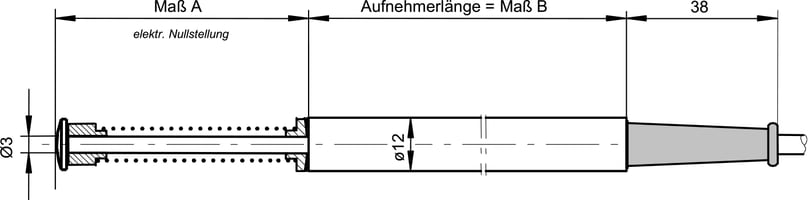

Axial cable (K)

Radial cable (Q)
Total body length: Dimension B+5

Radial connector (R)
Total body length: Dimension B+5

Radial connector (RS)
Total body length: Dimension B+5

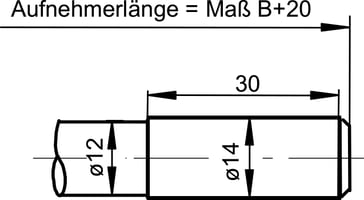

Axial connector (LX)

Electrical connection
Leads | K / Q | R | RS | LX | |
Connection type |
PTFE leads 250 mm long | PE-cable 2,5 m long Optional: PTFE-cable |
Amphenol C 091 connector |
Amphenol 3101 A connector |
LEMO ERA.1S.304.CLL |
Configuration | |||||
Excitation + | Brown | White | 2 | B | 2 |
Excitation - | Blue | Blue | 3 | C | 3 |
Measuring signal + | Red | Red | 1 | A | 1 |
Measuring signal - | Black | Black | 4 | D | 4 |
Mating connector (supplied) |
-- | -- | Amphenol C 091 | Amphenol 3106 A | LEMO FFA.1S.304.CLA 57 |
Notes
The movement has to be strictly axially on the cantilever. Radial forces / movement can lead to blocking of the sensor bar (especially the DTL 200).
DTL probes are not suitable for dynamic measurements (> 5 Hz).
