LVDT sensor WLG
LVDT sensor for numerous industrial applications in production, inspection, quality assurance, test and laboratory. The LVDT sensor with a Case diameter of 12mm has a coil unit calibrated to 80mV/V with a fully symmetrical coil design according to the LVIT differential choke principle / half-bridge circuit. The proven design guarantees high temperature stability with very low temperature drift. Variants with different Carrier frequencies and increased temperature and dynamic ranges are available, as well as different connection versions.
Special versions with modified flange and connection dimensions according to customer requirements are possible.
Special versions with modified flange and connection dimensions according to customer requirements are possible.
Important features
- Nominal stroke: 10 mm up to 500 mm
- Mechanical stroke: 10 mm up to 258 mm
- Case diameter: 12 mm
- Operating temperature: -50 ... 80 °C, optional up to 120 °C
- Protection class (DIN 40050): IP 64
Technical data
WLG 10 |
WLG 20 | WGC 40 | WLG 50 |
WLG 100 |
WLG 150 |
WLG 160 |
WLG 200 |
WLG 250 |
WLG 300 |
WLG 400 |
WLG 500 |
||
Nominal stroke | mm | ±5 | ±10 | ±20 | ±25 | ±50 | ±75 | ±80 | ±100 | ±125 | ±150 | ±200 | ±250 |
Mechanical stroke* | mm | ±10 | ±15 | ±30 | ±30 | ±60 | ±90 | ±90 | ±110 | ±135 | ±160 | ±210 | ±258 |
Dimension A | mm | 40 | 40 | 45 | 50 | 100 | 130 | 130 | 150 | 180 | 200 | 250 | 300 |
Dimension B | mm | 80 | 100 | 145 | 145 | 245 | 355 | 375 | 455 | 565 | 675 | 875 | 1065 |
Sensor weight (approx.) | g | 40 | 60 | 85 | 85 | 120 | 150 | 160 | 200 | 230 | 280 | 350 | 440 |
Core weight (approx.) | g | 6 | 8 | 9 | 9 | 12 | 15 | 16 | 20 | 25 | 30 | 40 | 50 |
Sensitivity | mV/V/mm | 16 | 8 | 4 | 3,2 | 1,6 | 1,07 | 1,0 | 0,8 | 0,64 | 0,53 | 0,4 | 0,32 |
* Mechanical stroke: Values beyond nominal stroke non specified; values non-applicable at inner end position on version “K”
Properties
WLG 10 ... 500 |
||||||
Nominal output* | 80 mV/V | |||||
Excitation voltage | 1 ... 5 V | |||||
Carrier frequency | 5 ... 10 kHz | |||||
Linearity** | ±0,25 % F.S.O., option: 0,1 % | |||||
Temperature coefficient of zero | ±0,02 % / 10 K | |||||
Temperature coefficient of span | ±0,05 % / 10 K | |||||
Operating temperature |
-50 °C ... +80 °C, option: up to 120 °C | |||||
Protection class (DIN 40050) |
IP 64 |
* Calibration accuracy: typically ±1 mV/V, max. ±3 mV/V
** Specify option on order
** Specify option on order
Model list
Abbr. | WLG | WLG | ||
Stroke | 10 ... 500 | 10 ... 500 | 10 ... 500 | |
Connection | Leads | ohne | -- | |
Axial cable | K | |||
Radial cable | Q | |||
Radial connector | R / RS | RS | R | |
LEMO connector radial | LR | -- | ||
Linearity (FSO) | 0,25 % | |||
0,1 % | ||||
Options |
High operating temperature 1) | /120°C | optional | -- |
PTFE cable 2) | /TF | optional | -- | |
Customised dimension A | /Axx | optional | optional |
1) PTFE cable with versions K and Q
2) with versions K and Q only
Do you have further technical questions about the product?
We will be happy to help you determine the order code and provide you with further specific information for your required product.
Dimensional drawings / Connection variants

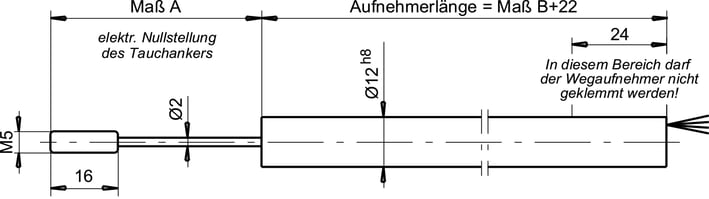

Leads ( )
Core channel continuous

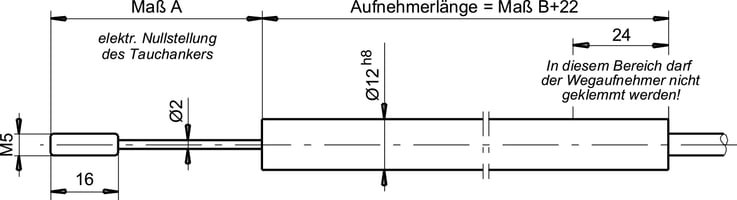

Axial cable(K)
Core channel not continuous

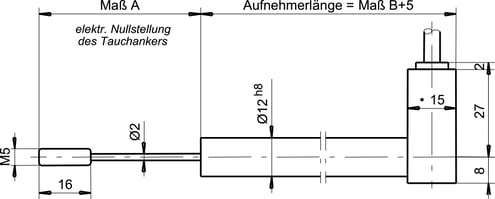

Radial cable(Q)
Core channel continuous

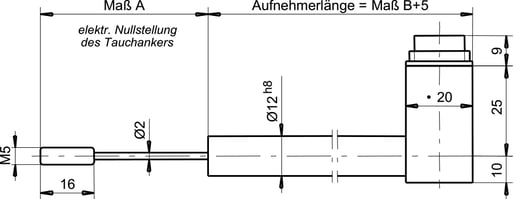

Radial connector (R)
Core channel continuous

Radial connector (RS)
Core channel continuous

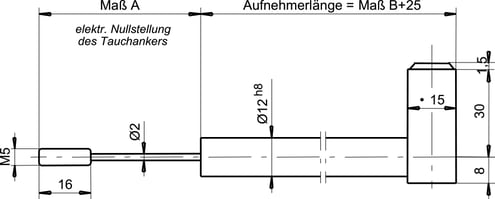

Lemo connector radial (LR)
Core channel continuous

Electrical connection
Leads | K / Q | R | RS | LR | |
Type of connection |
PTFE leads 250 mm long | PE-cable 2,5 m long Option: PTFE cable |
Amphenol C 091 connector (Mating plug supplied) |
Amphenol 3101 A connector | LEMO ERA.1S.303.CLL (Mating plug supplied) |
Pin configuration |
|||||
Power supply + | Blue | Blue | 3 | B | 3 |
Power supply - | Red | Red | 2 | C | 2 |
Measuring signal + | White + Yellow | White | 1 | A | 1 |
Measuring signal - | -- | -- | -- | -- | -- |
Mating plug (supplied) |
-- | -- | Amphenol C 091 | Amphenol 3106 A | LEMO FFA.1S.303.CLAC52 |
