LVDT sensor DU

Robust inductive universal displacement transducer for measuring ranges from 15mm to 1000mm for numerous industrial applications in hydraulic cylinders, valves, production and mechanical engineering. The cost-effective displacement transducer with a Case diameter of 14mm has a coil unit with fully symmetrical coil design according to the LVDT differential transformer principle / full bridge circuit. Versions with different connections of plugs and cables as well as for operation of different Carrier frequencies, as well as versions calibrated to 80mV/V and versions for operation at elevated temperatures are available.

Important features

  • Nominal stroke: 15 mm up to 1000 mm
  • Installation length: 70 mm up to 1420 mm
  • Case diameter: 14 mm
  • Operating temperature: -40 °C to +80 °C (option: up to 120 °C)
  • Protection class (DIN 40050): IP 64

Technical data

    DU
15
DU
25
DU
40
DU
50
DU
100
DU
150
DU
200
DU
250
DU
300
DU
400
DU
500
DU
600
DU
800
DU
1000
Nominal stroke mm ±7,5 ±12,5 ±20 ±25 ±50 ±75 ±100 ±125 ±150 ±200 ±250 ±300 ±400 ±500
Maximum stroke mm 18 28 42  55 105 160 210 260 320 420 520 630 830 1030
Dimension A mm 40 40 50 55 80 105 130 155 180 230 280 340 440 540
Mounting length B mm 70 80 100 120 160 240 320 400 480 620 750 880 1140 1420
Diameter d mm 2 3
Transducer weight (approx.) g 80 90 100 110 130 180 220 260 300 380 450 520 650 800
Core weight (approx.) g 7 7 8 9 16 20 25 28 30 35 40 50 65 80
Carrier frequency*   5 kHz, option: 10 kHz 5 kHz
Output signal
(5 kHz) (approx.)
mV/V 180 100 80 110 140 125 130 135 140 150 160 175 175 175
Output signal
(10 kHz) (approx.)
mV/V 180 100 100 100 135 140 140 160 210 210 250 -- -- --
Recommended measuring amplifier (5 kHz)   MBI 46.31 MBI 46.31 / MBI 50.33

* Select option when ordering

Properties

  DU 15 ... 1000
Excitation voltage (eff). 1 ... 5 V
Linearity*  ±0,5 % des Nennmessweges
Option: ±0,25 %
Temperature coefficient of zero ±0,04 % / 10 K
Temperature coefficient of span ± 0,1 % / 10 K
Operating temperature* -40 ° C ... +80 ° C, option: up to 120 °C
Protection class (DIN 40050) IP 64

* Select option when ordering

Dimensional drawings

Braided wire interface

Teflon braided wire 250 mm long

Core channel continuous

dimensional-drawing-du-braid

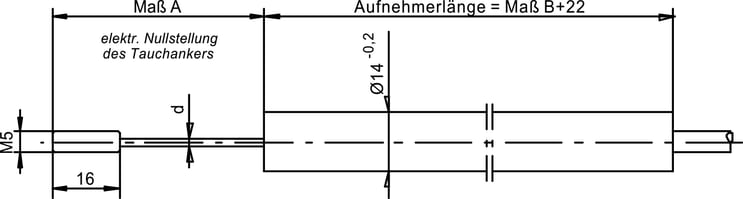

Axial wire interface

PE-cable 2.5 m long; optional: oil- and temperature resistant teflon-cable

core channel not continuous

dimensional-drawing-axial-wire-interface-du

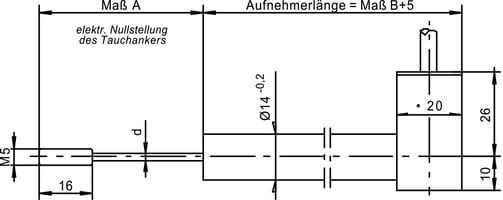

Radial wire interface

PE-cable 2.5 m long; optional: oil- and temperature resistant teflon-cable

core channel not continuous

dimensional-drawing-radial-wire-interface-du

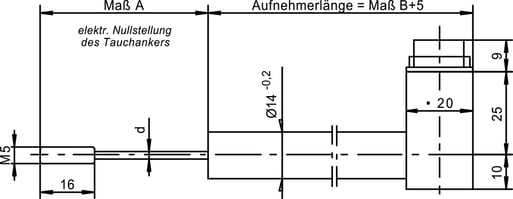

Radial connector interface

Mating connector supplied

Core channel continuous

dimensional-drawing-radial-connector-interface-du
