LVDT sensor WLH

Low-cost LVDT sensor for numerous industrial applications in production, inspection, quality assurance, test and laboratory. The LVDT sensor with a Case diameter of 12mm has a coil unit with fully symmetrical coil design according to the LVIT differential choke principle / half-bridge circuit. The proven design guarantees high temperature stability with very low temperature drift. Variants with different Carrier frequencies and increased temperature and dynamic ranges are available, as well as different connection versions.

Special versions with modified flange and connection dimensions according to customer requirements are possible.

Important features

  • Nominal stroke: 10 mm up to 500 mm
  • Mechanical stroke: 2 mm up to 258 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, option: up to 120 °C
  • Protection class (DIN 40050): IP 64

Technical data

    WLH
1
 WLG
2		 WLH
5
 WLH
10
 WLH
20
 WLH
40
 WLH
50
 WLH
100
 WLH
150
 WLH
200
 WLH
250
 WLH
300
 WLH
400
 WLH
500
Nominal stroke mm ±0,5 ±1 ±2,5 ±5 ±50 ±10 ±25 ±50 ±75 ±100 ±125 ±150 ±200 ±250
Mechanical stroke* mm 2 3 6 ±10 ±15 ±30 ±30 ±60 ±90 ±110 ±135 ±160 ±210 ±258
Dimension A mm 30 30 40 40 40 45 50 100 130 150 180 200 250 300
Dimension B mm 22 22 30 80 100 145 145 245 355 455 565 675 875 1065
Sensor weight (approx.) g 11 11 15 40 60 85 85 120 150 200 230 280 350 440
Core weight (approx.) g 2 2 3 6 6 8 9 9 12 15 25 30 40 50
Nominal output mV/V 30 80 110 90 130 180 240 290 310 330 310 320 320 350
Sensitivity mV/V/mm 60 80 44 18 13 9 9,6 5,8 4,1 3,3 2,5 2,1 1,6 1,4
Linearity**   ±0,5 % F.S.O. ±0,5 % F.S.O., option: 0,25 % and 0,1 %

* Mechanical stroke: Values beyond nominal stroke non specified; values non-applicable at inner end position on version “K”
** Specify option on order

Properties

  WLH 1 ... 500
Excitation voltage (eff.) 1 ... 5 V
Carrier frequency 5 ... 10 kHz
Temperature coefficient of zero ±0,02 % / 10 K
Temperature coefficient of span ±0,05 % / 10 K
Operating temperature* -50 °C ... +80 °C, option: bis 120 °C
Protection class (DIN 40050)
 IP 64

* Specify option on order

Model list

    Abbr. WLH WLH WLH
Stroke 1 ... 500   1 ... 5 10 ... 500 10 ... 500
Connection Leads none --
Axial cable K --
Radial cable Q -- --
Radial connector R -- --
Linearity (FSO) 0,5 %
0,25 %   --
0,1 %   --
Options
 Higher operating temperature 1) /120°C -- optional WLH ... RS series
PTFE-cable 2) /TF optional optional optional
Customised dimension A /Axx optional optional optional

1) PTFE cable with versions K and Q
2) with versions K and Q only

Dimensional drawings / Connection variants

Leads ( )

Core channel continuous

dimensional drawing wlg leads

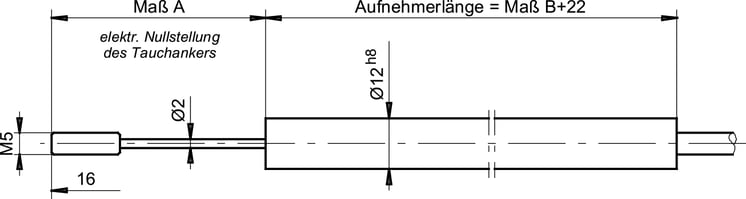

Axial cable (K)

Core channel not continuous

dimensional drawing wlh axial cable

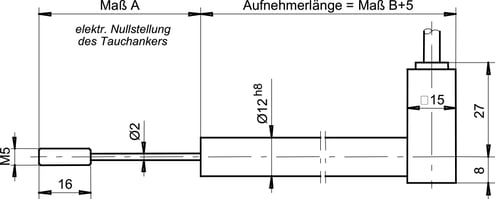

Radial cable (Q)

Core channel continuous

dimensional drawing wlh radial cable

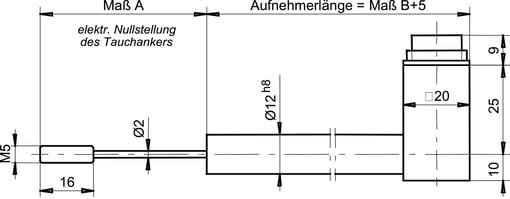

Radial connector (R)

Core channel continuous

dimensional drawing wlh radial connector

Electrical connection

  Leads K / Q R
Type of connection
 PTFE leads 250 mm long PE-cable 2.5 m long
Option: PTFE cable		 Amphenol C 091 connector
(Mating plug supplied)
Pin configuration
 wlh pin configuration leads wlh configuration cable stecker-radial
Power supply + Blue Blue 3
Power supply - Red Red 2
Measuring signal + White + Yellow White 1
Measuring signal - -- -- --
Mating plug (supplied) -- -- Amphenol C 091
