Power board MBI 50.43


Max. current	25 mA at ±15 V supply without current output stage 50 mA at ±15 V supply with current output stage
Zero point adjustment	through potentiometer
Gain adjustment	fine: by potentiometer coarse: by fixed resistor
Phase adjustment	through fixed capacitor
Electrical connector	Plug connector according to DIN 41612, 32-pin, type C Special version: 16-pin terminal block
Required mating connector	Female connector according to DIN 41612, 32-pin, type C or D
Operating temperature	0 ... 60°C
Storage temperature	-25 ... 85°C

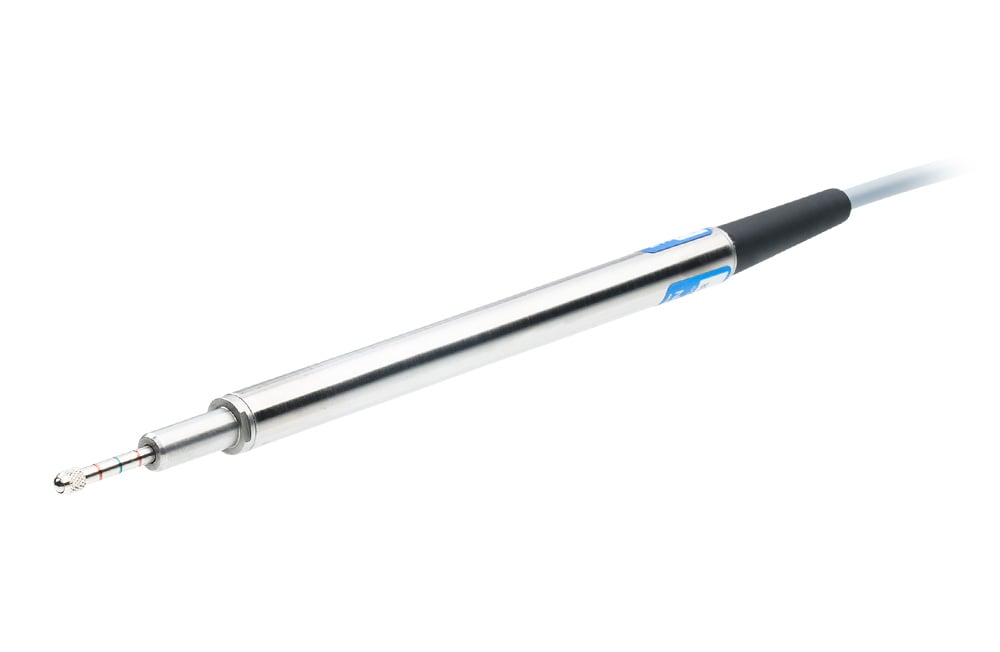

Type		Inductive transducers in differential LVIT sensor or differential transformer circuits
Required sensitivity		10 ... 400 mV/V


Linearity error	< 0.1%
Temperature coefficient of zero point	< 0.1 % / 10 K
Temperature coefficient of sensitivity	< 0.2 % / 10K
Interference voltage (residual carrier voltage)	< 2 mV_rms
Load capacity max.	10 mA
Drift	ca. ±10 % of final value; up to ±100 % possible as special version
Cutoff frequency for the measurement signal (-3 dB)	500 Hz


Operating voltage	±15 V; 230 V~ in field housing
Rated output	±10 V; 4 ... 20 mA
Dimensions without front panel and field housing	approx. 100 x 167 x 25 mm
Front panel dimensions	35.3 x 128.4 mm (19": 7 TE x 3 HE)
Weight without front panel and field housing	approx. 0.2 kg
Weight with front panel	approx. 0.23 kg
