LVDT sensor DL

Differential transformer type - compact design

Important features

  • Nominal stroke: 50 mm up to 400 mm
  • Installation length: 120 mm up to 620 mm
  • Case diameter: 20 mm
  • Connections: Braided wire, axial and radial cable
  • Carrier frequency: 5 kHz (Option: 10 kHz)
  • Operating temperature: -40 ... 80 °C (option: up to 120 °C)
  • Protection class (DIN 40050): IP 64

Technical data

    DL 50 DL 100 DL 150 DL 200 DL 250 DL 300 DL 400
Nominal stroke mm ±25 ±50 ±75 ±100 ±125 ±150 ±200
Maximum stroke mm 55 105 160 210 260 320 420
Zero (Dimension A) mm 55 80 105 130 155 180 230
Mounting length B mm 120 120 240 320 400 480 620
Diameter d mm 2 3 3 3 3 3 3
Transducer weight (approx.) g 110 130 180 220 260 300 380
Core weight (approx.) g 9 16 20 25 28 30 35
Output signal (approx.) mV/V 170 160 170 180 190 200 240

* Select option when ordering

Properties

    DL 50 ... 400
Suitable carrier frequency*   5 kHz option: 10 kHz
Supply voltage Vrms 1 ... 5
Recommended measuring amplifier   MBI 46.31
Linearity error*  ±0,5 % F.S.O
Option: 0,25 %
Temperature coefficient of zero ±0,04 % / 10 K
Temperature error of sensitivity ±0,1 % / 10 K
Operating temperature* -40 °C ... +80 °C, option: up to 120 °C
Protection class (DIN 40050) IP 64

* Select option when ordering

Dimensional drawings / Connection variants

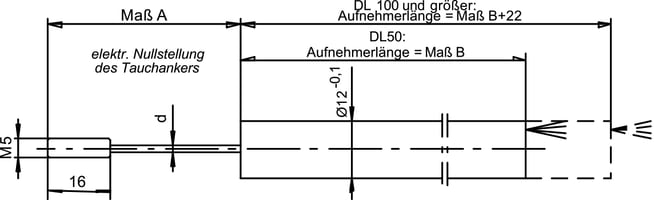

Braided wire interface

Teflon braided wire 250 mm long

Core channel continuous

dimensional-drawing-dl-braided-wire-interface

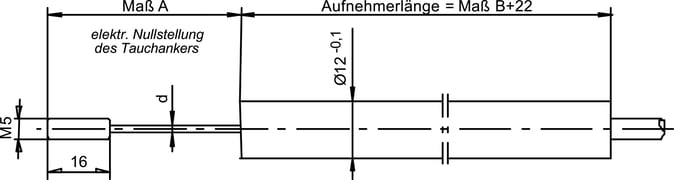

Axial wire interface

PE-cable 2,5 m long; optional: Oil- and temperature resistant teflon-cable

Core channel not continuous

dimensional-drawing-dl-axial-wire-interface

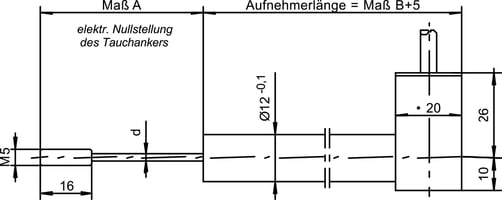

Radial wire interface

PE-cable 2,5 m long; optional: Oil- and temperature resistant teflon-cable

Core channel continuous

dimensional-drawing-dl-radial-wire-interface

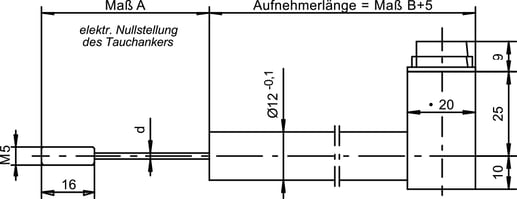

Radial connector interface

Mating connector provided

Core channel continuous

dimensional-drawing-dl-radial-connector-interface

Downloads

icon-pdf-blueProduct data sheet

icon-pdf-blueInstallation / technical information

icon-pdf-blueProduct group overview
