LVDT sensor DPN

Pressure resistant cylinder displacement transducer with hole flange for installation in the cylinder base with internal sensor and core rod. The displacement transducer with a Case diameter of 14mm is Pressure resistant up to 160bar as standard and has a coil unit completely encapsulated in the casing with a fully symmetrical coil design according to the LVDT full bridge circuit. This achieves good linearity and high temperature stability with low temperature drift. Versions with 5kHz and 10kHz Carrier frequency as well as for increased temperature are available.

Special versions with modified flange dimensions, with integrated electronics and in other pressure classes according to customer requirements are possible.

		DPN 25	DPN 50	DPN 100	DPN 150	DPN 200	DPN 250	DPN 300	DPN 400	DPN 500	DPN 600	DPN 800	DPN 1000
Nominal stroke	mm	±12,5	±25	±50	±75	±100	±125	±150	±200	±250	±300	±400	±500
Maximum stroke	mm	30	55	105	160	210	260	320	420	520	630	830	1030
Dimension A	mm	40	55	80	105	130	155	180	230	280	340	440	540
Mounting length B	mm	60	100	140	220	300	380	480	600	730	860	1120	1400
Transducer weight (approx.)	g	700	730	750	830	870	900	950	1050	1150	1250	1400	1600
Plunger weight (approx.)	g	12	14	16	20	25	28	30	35	40	50	65	80
Carrier frequency*		5 kHz, option: 10 kHz									5 kHz
Output signal (5 kHz) (approx.)	mV/V	100	110	140	125	130	135	140	150	160	175	175	175
Output signal (10 kHz) (approx.)	mV/V	100	100	135	140	140	160	210	210	250	--	--	--

		DPN 25 ... 1000
Recommended measuring amplifier		MBI 46.31
Excitation voltage (eff.)		1 ... 5 V
Linearity error*		±0,5 % F.S.O. Option: ±0,25 %
Temperature coefficient of zero		±0,04 % / 10 K
Temperature coefficient of span		±0,1 % / 10 K
Pressure resistance		operating pressure 160 bar, test pressure 200 bar
Operating temperature*		-40 °C ... +80 °C, option: up to 120 °C
Protection class (DIN 40050)		IP 64

LVDT sensor DPN

Important features

Technical data

Properties

Do you have further technical questions about the product?

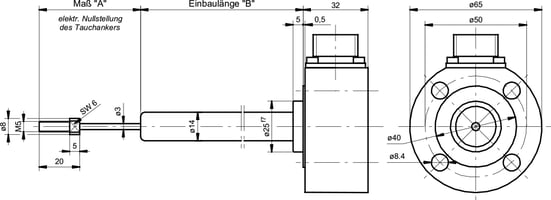

Dimensional drawings / Connection variants
