LVDT sensor DWO

		DWO 50	DWO 100	DWO 150	DWO 200	DWO 250	DWO 300	DWO 400	DWO 500
Nominal stroke	mm	50	100	150	200	250	300	400	500
Mechanical stroke	mm	55	105	160	210	260	320	420	520

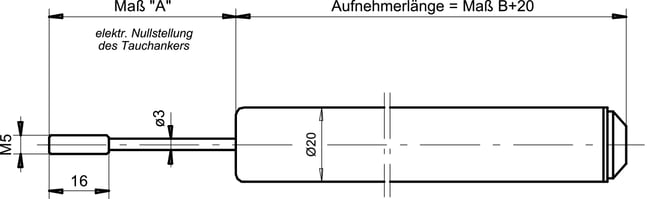

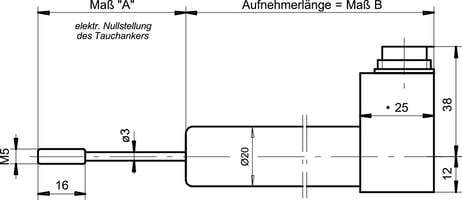

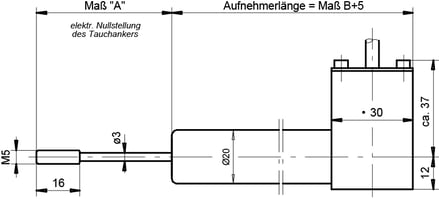

Dimension A	mm	55	80	105	130	155	180	230	280
Dimension B	mm	130	170	250	330	410	490	630	760
Sensor weight (approx.)	g	600	650	750	900	1000	1150	1350	1500
Core weight (approx.)	g	9	16	20	25	28	30	35	40
Carrier frequency*		5 kHz, optional: 10 kHz							5 kHz
Recommended measuring amplifier		MBI 46.31							MBI 46.31 / MBI 50.33

* Specify on order

	DWO 50 ... 500
Supply voltage (rms)	up to 5 V
Static resolution	virtually infinite
Linerarity*	± 0,5% F.S.O., optional: ± 0,25%
Temperature coefficient of zero	± 0,04 % / 10K
Temperature coefficient of sensitivity	± 0,1 % / 10K
Operating temperature	-20° C up to +80° C
Protection (DIN 40050)	IP 66
