LVDT sensor EDD
with integrated electronics
-
Fully symmetrical LVDT setup
-
Available measuring ranges 15 up to 1000 mm
-
Standard version
• Supply +10...+30 VDC
• Output +2...+10 VDC, 4...20 mA, PWM -
Miniature version (20 mm shorter)
• Supply +5 VDC
• Output +0,5...4,5 VDC oder PWM
Important features
- Nominal stroke: 15 mm up to 1000 mm
- Installation length: 430 mm up to 1470 mm
- Case diameter: 3 mm
- Carrier frequency: 5 kHz (option: 10 kHz)
- Operating temperature: 0 ... 70 °C
- Protection (DIN 40050): IP 64
Technical data
EDD 15 |
EDD 25 |
EDD 40 |
EDD 50 |
EDD 100 |
EDD 150 |
EDD 200 |
EDD 250 |
EDD 300 |
EDD 400 |
EDD 500 |
EDD 600 |
EDD 800 |
EDD 1000 |
||
Nominal stroke | mm | ±7,5 | ±12,5 | ±20 | ±25 | ±50 | ±75 | ±100 | ±125 | ±150 | ±200 | ±250 | ±300 | ±400 | ±500 |
Mechanical stroke | mm | 18 | 28 | 42 | 55 | 105 | 160 | 210 | 260 | 320 | 420 | 520 | 630 | 830 | 1030 |
Installation length B, Mini- / Standard version |
mm | 100 / 120 | 110 / 130 | 130 / 150 | 150 / 170 | 190 / 210 | 270 / 290 | 350 / 370 | 430 / 450 | 510 / 650 | 650 / 670 | 780 / 800 | 910 / 930 | 1170 / 1190 | 1450 / 1470 |
Dimension A, other dimensions as option* | mm | 40 | 40 | 50 | 55 | 80 | 105 | 130 | 155 | 180 | 230 | 280 | 340 | 440 | 540 |
Core holder diameter d1 | mm | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Sensor weight (approx.) | g | 120 | 130 | 140 | 150 | 170 | 220 | 260 | 300 | 340 | 420 | 490 | 560 | 690 | 840 |
Core weight (approx.) | g | 7 | 7 | 8 | 9 | 16 | 20 | 25 | 28 | 30 | 35 | 40 | 50 | 65 | 80 |
* Specify options on order
Properties
EDD 15 ... 1000 | ||||||
Displacement transducer diameter D | 14-0,2 | |||||
Core diameter d2 (incl. Teflon)1 | 3 (3,6) mm |
|||||
Supply UB | Version /A: +15 ... +30 VDC (+10...+30 VDC at RLoad < 200 Ohm) Versions /V, /P: +10 ... +30 VDC Versions /VM, /PM: +5 ± 0,25 VDC |
|||||
Output signal
(inner end position ... middle position ... outer end position) Inverted output signal as an option* |
Version /A: 4 ... 12 ... 20 mA (at RLoad < 500 Ohm) Version /V: +2 ... +6 ... +10 VDC Version /P: PWM (TTL level) with duty factor 10 ... 50 ... 90 % Version /VM: +0,5 ... +2,5 ... +4,5 VDC Version /PM: PWM (TTL-level) with duty factor 10 ... 50 ... 90 % |
|||||
Linearity | < ±0,5 % F.S.O. | |||||
Temperature coefficient of the output signal | < ±0,5 % / 10 K | |||||
Operating temperature | 0 °C ... +70 °C | |||||
Protection class according to DIN 40050 | IP 64 |
1The Teflon coating of the core rod is only for mechanical sliding and has no influence on the electrical properties of the LVDT sensor.
* Specify options on order
Model list
Abbr. | EDD | ||
Measuring range | see technical data | 15 ... 1000 | |
Connection variant | Leads 1) | ohne | (AWG 30) |
PE-cable axial 1) | K | ||
PE-cable radial 1) | Q | ||
Axial connector 1) 2) | LX | ||
Radial connector 1) 2) | R | ||
Linearity (FS) | 0,5 % | ||
Version /A | /A | ||
Version /V | /V | ||
Version /P | /P | ||
Version /VM | /VM | ||
Version /PM | /PM | ||
Options |
Output signal inverted (decreasing) | /INV | optional |
Custom dimension A | /Axx | optional | |
PTFE-cable | /TF | optional |
1) Core channel not continuous
2) Mating connector supplied
Do you have further technical questions about the product?
We will be happy to help you determine the order code and provide you with further specific information for your required product.
Dimensional drawings / Connection variants

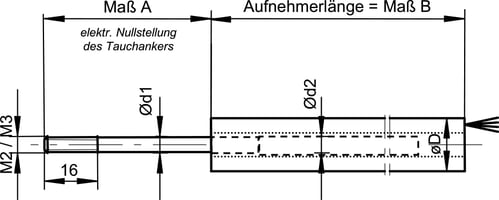

Leads ( )
Core channel not continuous

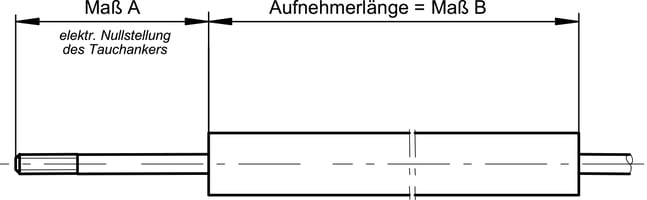

Axial cable connection (K)
Core channel not continuous

Radial cable connector (Q)
Core channel not continuous
Transducer length = Dimension B+5
*) 20x20

Radial connector (R)
Core channel not continuous
Transducer length = Dimension B+5
**) 20x20

Axial connector (LX)
Core channel not continuous
Transducer length = Dimension B+25

Electrical connection


Leads ( ) | Cable (K) / (Q) | Connector (R) | Connector (LX) | Signal | Note |
Red | Red | 1 | 1 | UB (Supply) | >>> Not electrically isolated !!! For /A, /V, /P: polarity reversal protection For /VM, /PM: NOT reverse polarity protected !!! |
Black | Black | 2 | 2 | COM | Reference potential for supply and output |
White (or yellow) | White | 3 | 3 | Output /A, /V | >>> Do not apply ext. voltage !!! |
Blue | Blue | 4 | 4 | Output /P, /VM, /PM | >>> Do not apply ext. voltage !!! |
-- | Shield | 5 | Casing | Shielding |
