LVDT sensor with special flange and increased impedance for numerous industrial applications in production, inspection, quality assurance, testing and laboratory, especially for installation in test cylinders of dynamic testing machines. The LVDT sensor with a Case diameter of 12mm has a coil unit calibrated to 80mV/V with fully symmetrical coil construction according to the LVIT differential choke principle / half-bridge circuit. The proven design guarantees high temperature stability with very low temperature drift. Variants with different Carrier frequencies and increased temperature and dynamic ranges are available.
Special versions with modified flange and connection dimensions according to customer requirements are possible.
Important features
Nominal stroke: 20 mm up to 400 mm
Mechanical stroke: 20 mm up to 420 mm
Case diameter: 12 mm
Operating temperature: -55 ... 100 °C
Protection (DIN 40050): IP 64
Technical data
WLB 20
WLB 40
WLB 100
WLB 200
WLB 250
WLB 400
Nominal stroke
mm
±10
±20
±50
±100
±125
±200
Mechanical stroke
mm
20
50
120
220
270
420

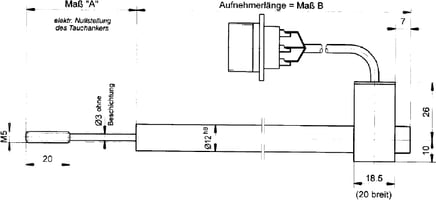

Dimension A
mm
45
50
80
135
165
235
Dimension B
mm
80
130
245
455
565
875
Sensor weight (approx.)
g
60
100
150
13
260
380
Core weight (approx.)
g
7
9
12
20
25
40
Sensitivity*
mV/V/mm
8
4
1,6
0,8
0,64
0,4
* @ 5 kHz CF

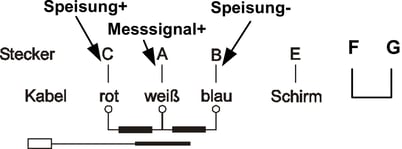

Properties
WLB 20 ... 400
Nominal output signal* / **
80 mV/V
Supply voltage
up to 5V
Carrier frequency
5 ... 10 kHz
Linearity***
±0,4 % F.S.O., option: 0,2 % / 0,1 %
Temperature coefficient of zero
< ±0,05 % / 10 K
Temperature coefficient of sensitivity
< ±0,2 % / 10 K
Operating temperature
-55 °C ... +100 °C
Protection class according to DIN 40050
IP 64
* @ 5 kHz CF
** Calibration tolerance: ±3 mV/V
*** Specify options on order
