Proximity sensor MNS3-M12

Proximity sensor with integrated electronics

Proximity sensor in M12 housing for standard industrial applications

  • compact M12 housing, IP 67
  • for flush mounting
  • Power supply 11 … 35 VDC

Important features

  • Measuring range: 0,25 mm to 3,0 mm
  • Output signal: 1 ... 9 VDC oder 4 ... 20 mA
  • Operating temperature: -25 °C ... +70 °C
  • Protection: IP 67

Technical data

    MNS3-M12-ANU-K MNS3-M12-ANI-K
Measuring range Sn 0,25 ... 3,0 mm
Linearity   = 3 %
Reproducability R = 1 %
Supply voltage Ub 11 ... 35 VD 10 ... 35 VD
Max. ripple on supply   = 10 %
No-load current I0 = 5 mA = 10 mA
Polarity protection   yes
Output signal   1 ... 9 VDC
(0,25 mm = 1 V, 3,0 mm = 9 V)		 4 ... 20 mA
(0,25 mm = 4 mA, 3,0 mm = 20 mA)
Typ. sensitivity   2,91 V/mm ± 5 % 5,82 mA/mm ± 5 %
Cut-off frequency f 500 Hz 450 Hz
Load RL = 1 kOhm = 500 Ohm
Output ripple   = -50 dB
Mounting   flush-mount
Protection (DIN 40050)   IP 67
Case material   nickel-plated brass
Front cap   PCP
Operating temperature Ta -25 °C ... +70 °C
Drift   ± 5 %
EMC   Acc. to IEC 60947-5-2, Part 7.4.1/7.4.2
Connection   2m cable LIYY 3x0.34 mm2

Options:

Available:

  • with connector
  • for non-flush mounting (measuring range 0,5 ... 4 mm)

Mechanical drawing / connection

MNS3-M12

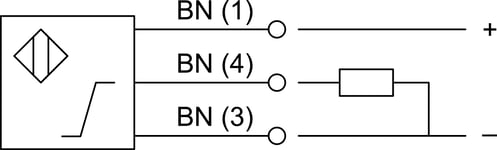

Connection

anschluss-mns2-g6-5
